Major Repair Kit Replaces Sherwood 23975
Replaces: 23975 , 23975-SHW The Mechanical Seal in this Kit is the longer lasting 23799 style silicon carbide seal, suitable only if you have the original factory shaft. Must be able to see the retaining ring when impeller is removed.
Fits Sherwood Pumps: P1710 , P1710X , P1710-02 , P1726 , P1726X , P1732X , P1732-02 , P176 , P176X , P176-02
One end of the impeller is threaded for use with puller.

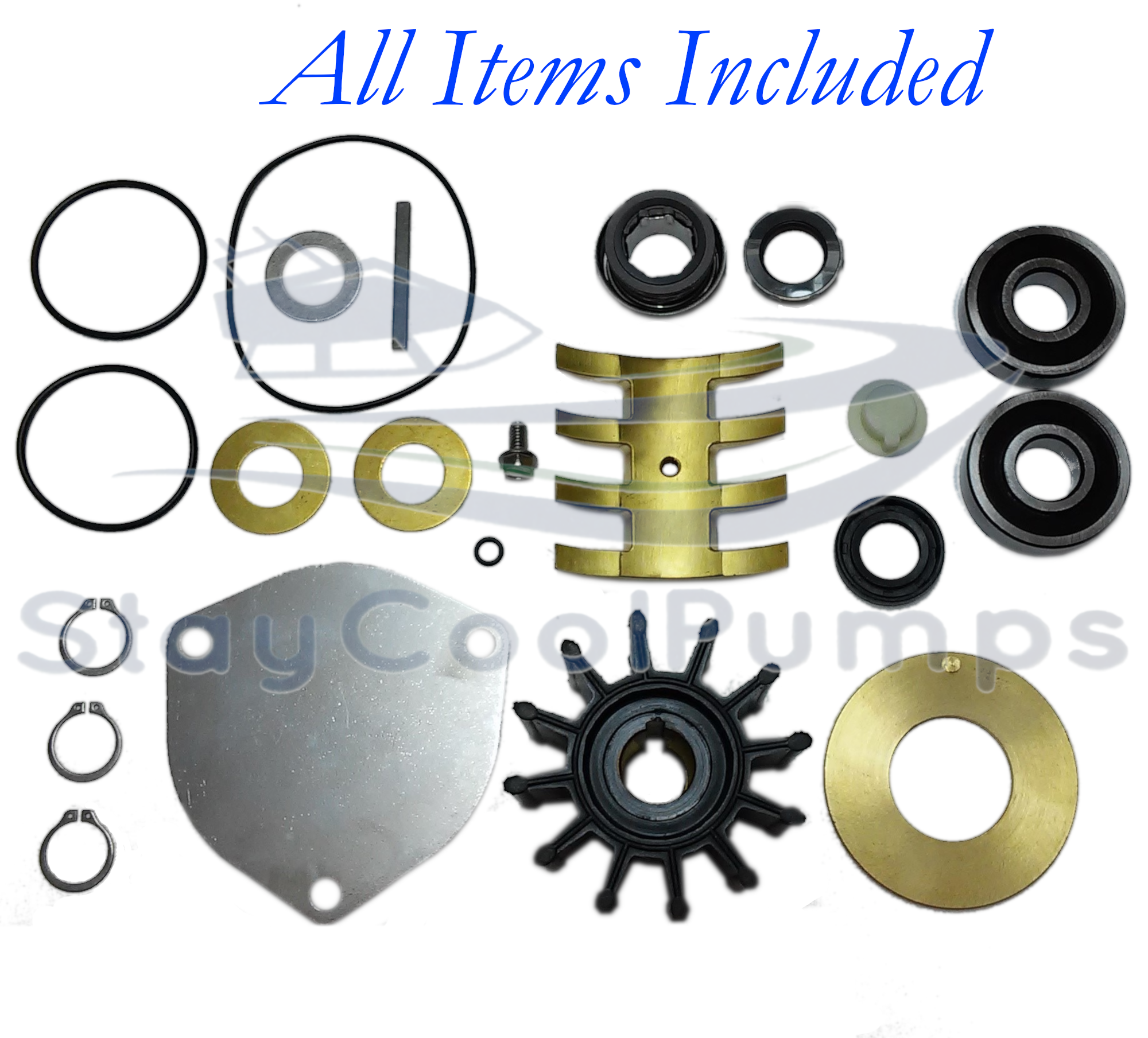

Contains Aftermarket Parts. Includes:

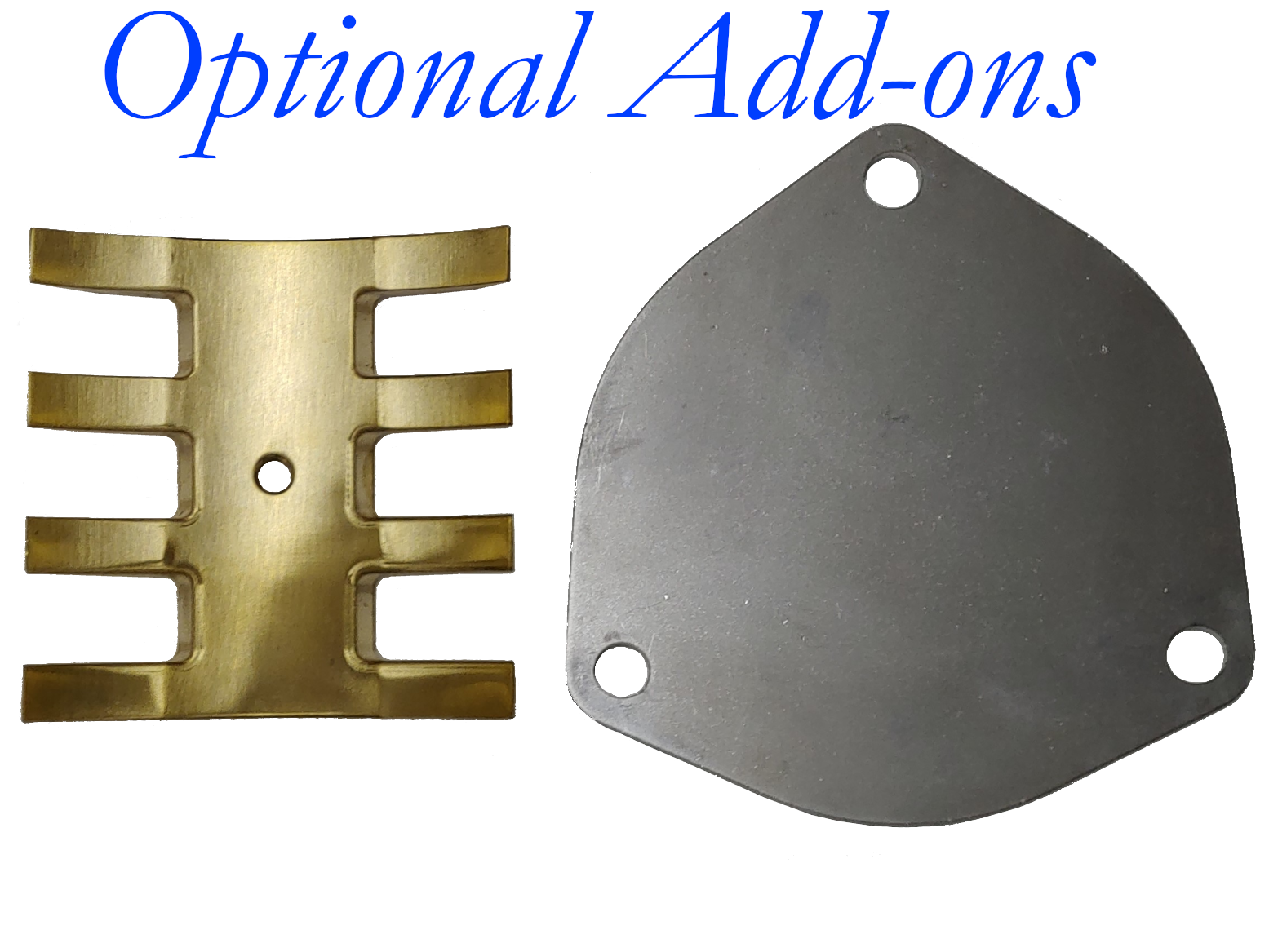

1 ea cam (optional)
1 ea cam screw
4 ea o-ring
2 ea bearing
3 ea washer
1 ea end plate (optional)
3 ea retaining ring
1 ea impeller
1 ea pin / plate assembly
1 ea key
1 ea lip seal
1 ea mechanical seal , Silicon Carbide
1 ea retention plug
17000k Impeller Specifications:
Width: 2-7/8" (73mm)
Diameter: 3-5/16" (84mm)
Shaft: 20mm
Drive: 3/16" key
Material: Neoprene
Silhouette: 12 blades
