Repair Kit for Jabsco Pump 17360-1001
New pump repair kit for:
Detroit Diesel Pumps 8923363 , 23507973 , 23507975 , 23507976 , 23507977
Caterpillar D-336 D-343 D-353 with Jabsco pump 17360-1001, CAT pump 3N1888
Detroit Diesel Models: 671TI , 871 , 1271 , V-71 , V-92 with Jabsco pump 17360-1001
6 cover screws , double flat drive impeller.

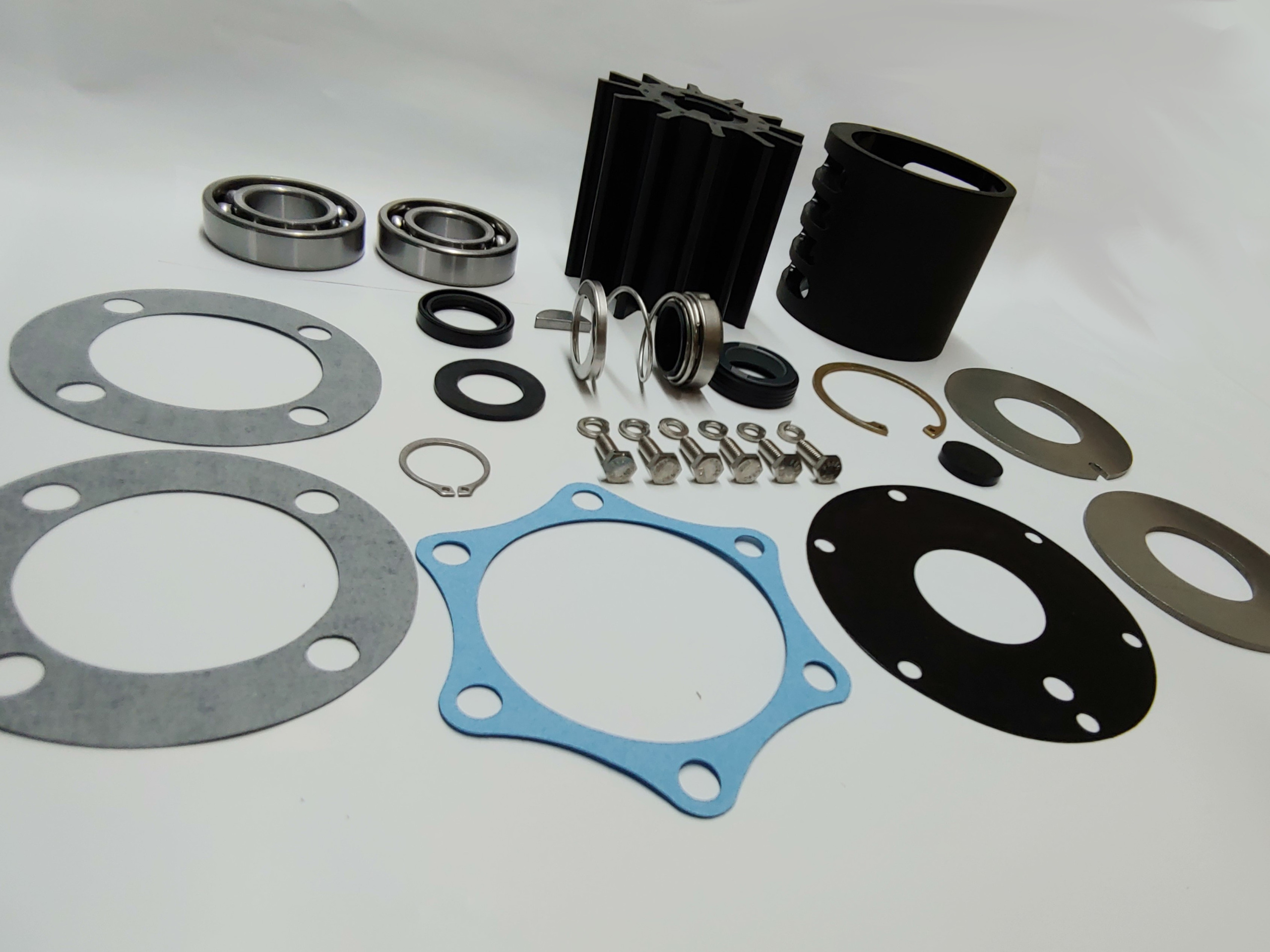

Major Kit contains all internal service parts except the shaft.
Replaces:

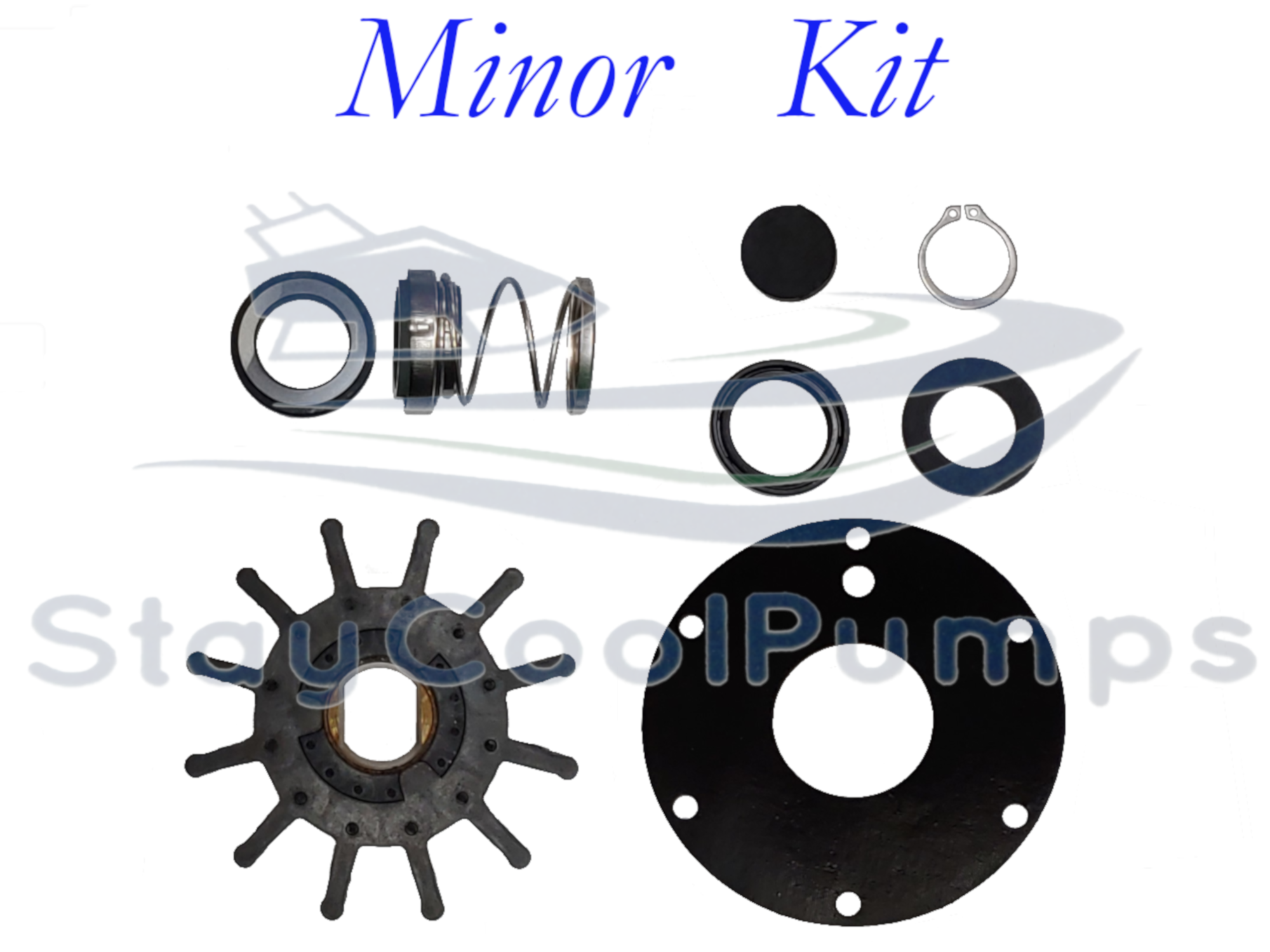

90190-0001 minor service kit

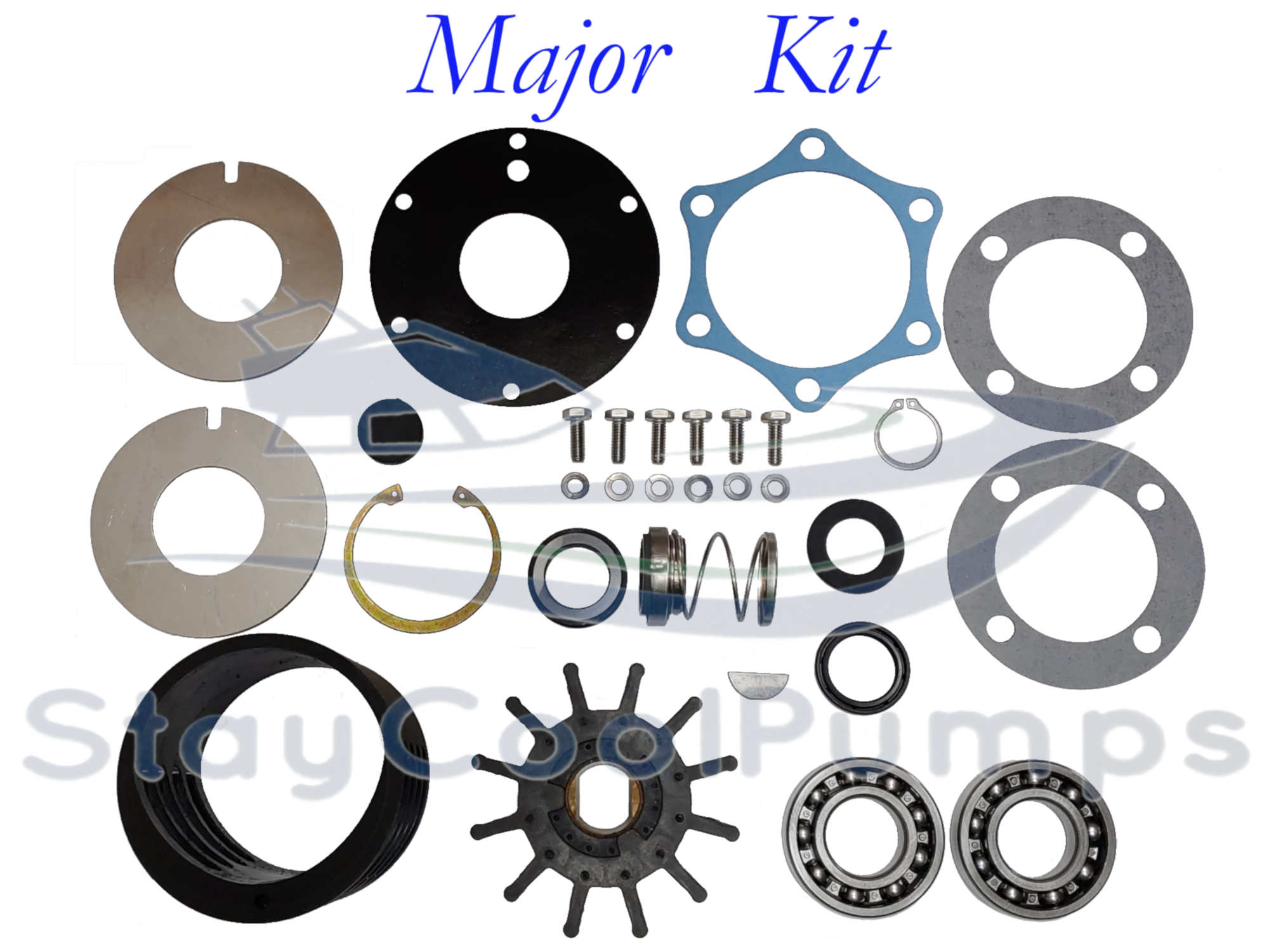

18760-0001MJK Major Service Kit.
13660-1001MJK Major Service Kit.
Similar to DD 8927566 , but does not include the shaft.
Contains some aftermarket parts. Replaces:
17370-0001 IMPELLER w/ Spline plug
17365-1000 Gasket
18721-0000 RETAINING RING (minor)
96080-0371 MECHANICAL SEAL (minor)
18754-1004 Slinger (minor)
92701-0180 LIP SEAL (minor)
91005-0040 (6) SCREW (major)
91402-0230 WOODRUFF KEY (major)
18725-0000 RETAINING RING (major)
18752-0000 (2) BEARING (major)
17372-0000 (2) WEARPLATE (major)
17374-1000 CAM LINER (major)
23501662 GASKET mount (major)
5112143 (2) Flange Gasket Round (major)

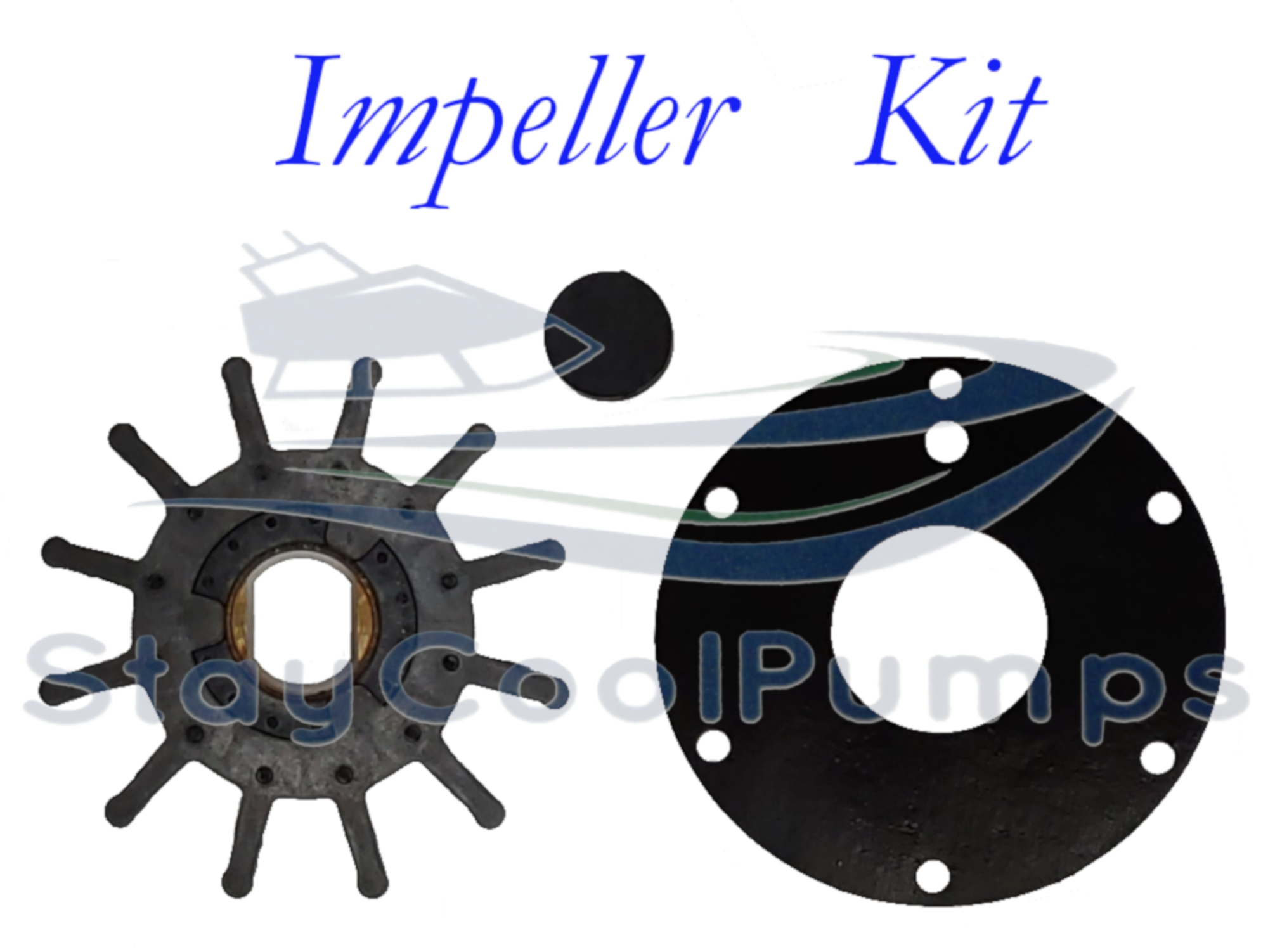

Impeller Specifications:
Width: 3-1/2" (88.9mm)
Diameter: 3-3/4" (95mm)
Shaft: 1" (25.4mm)
Drive: Type 5 Double Flat
Material: Neoprene
Silhouette: Q 12 blades
