Repair Kit fits Caterpillar Pump 3406

SKU:
$75.00
$75.00
Unavailable
per item

New pump repair kit for Caterpillar 3N4851 3N4852 5N4852 Pumps

Jabsco 17970-0100  < 17970-0000

Pump fits Caterpillar 3406

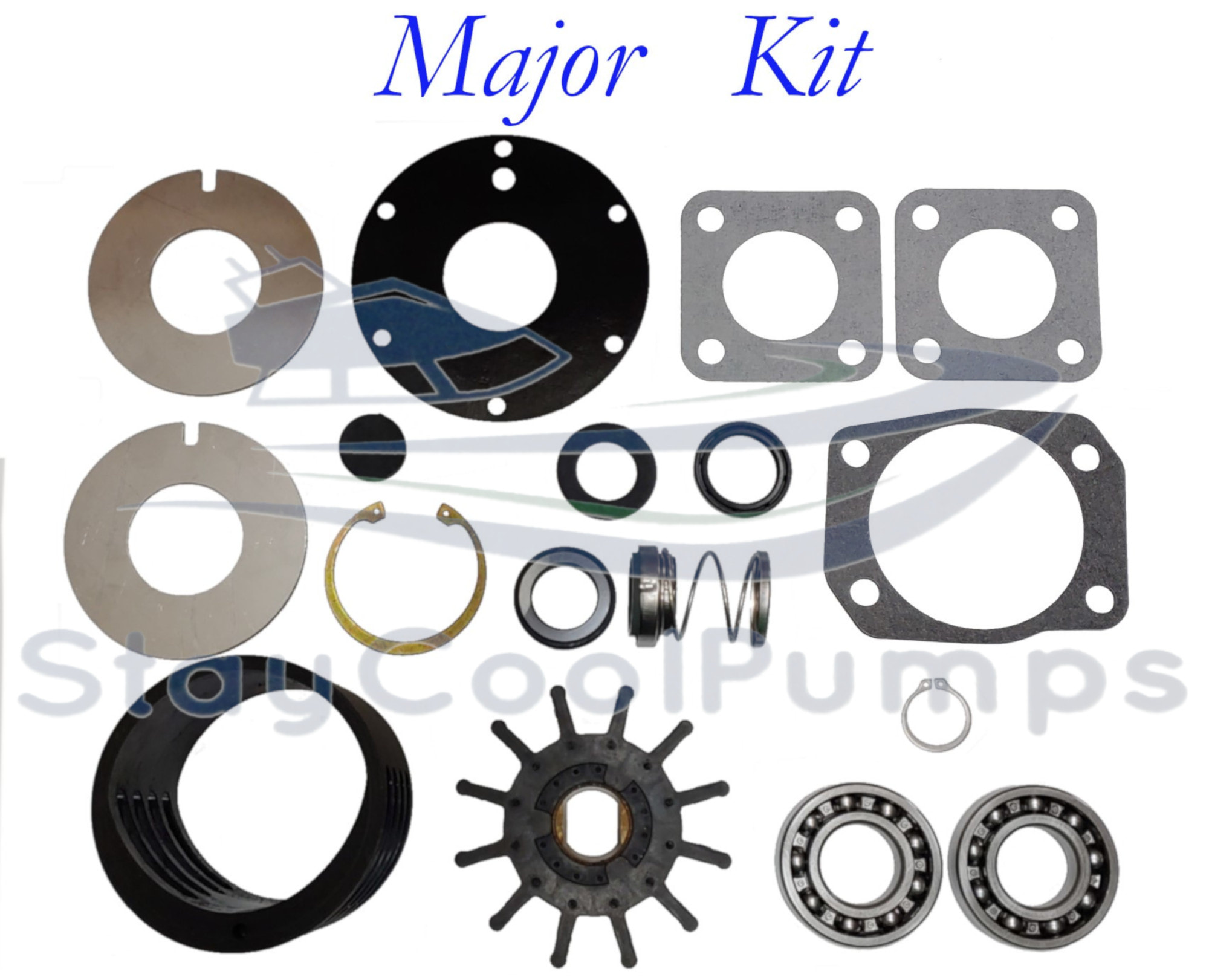

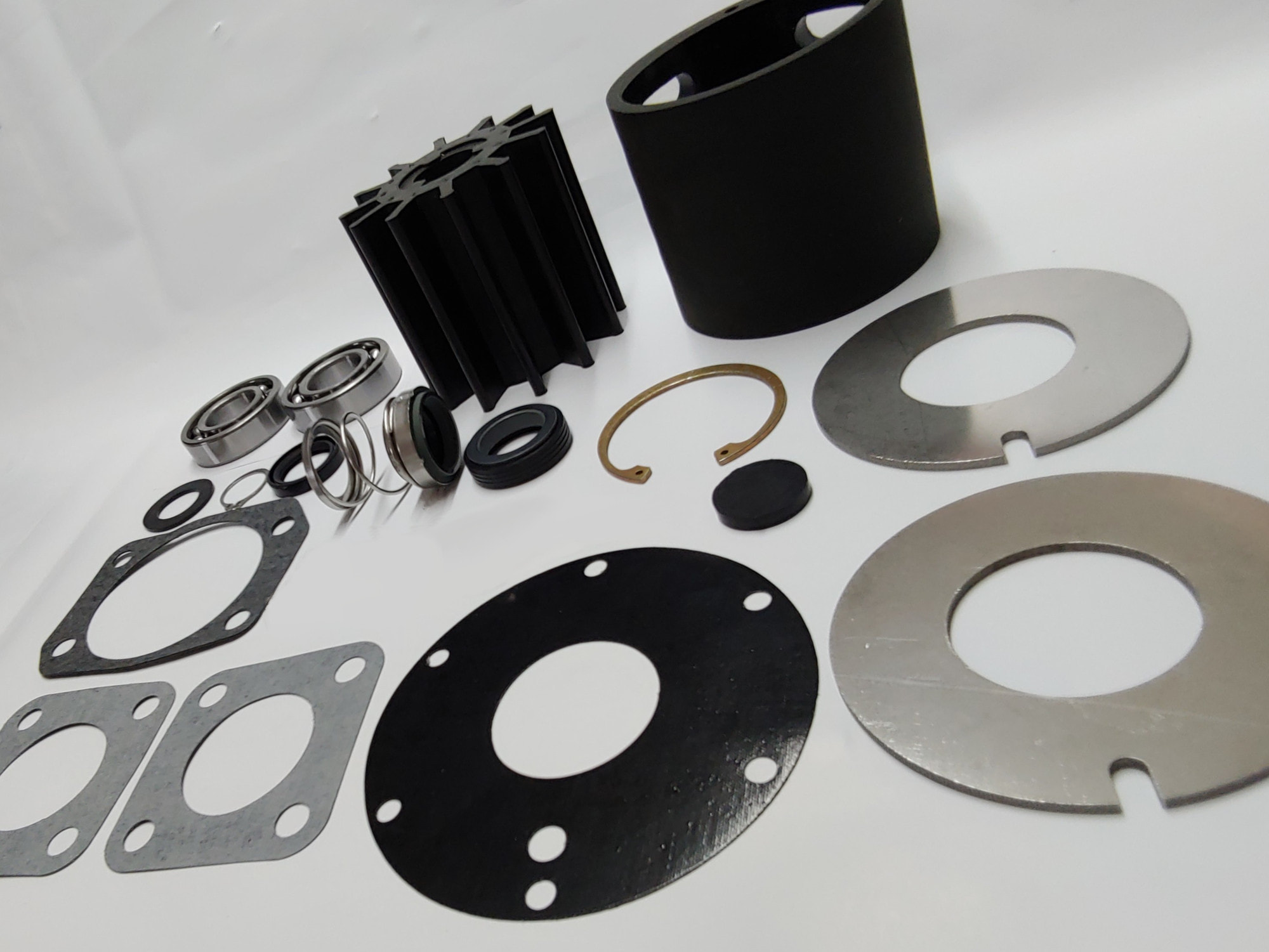

Contains aftermarket parts. Replaces:

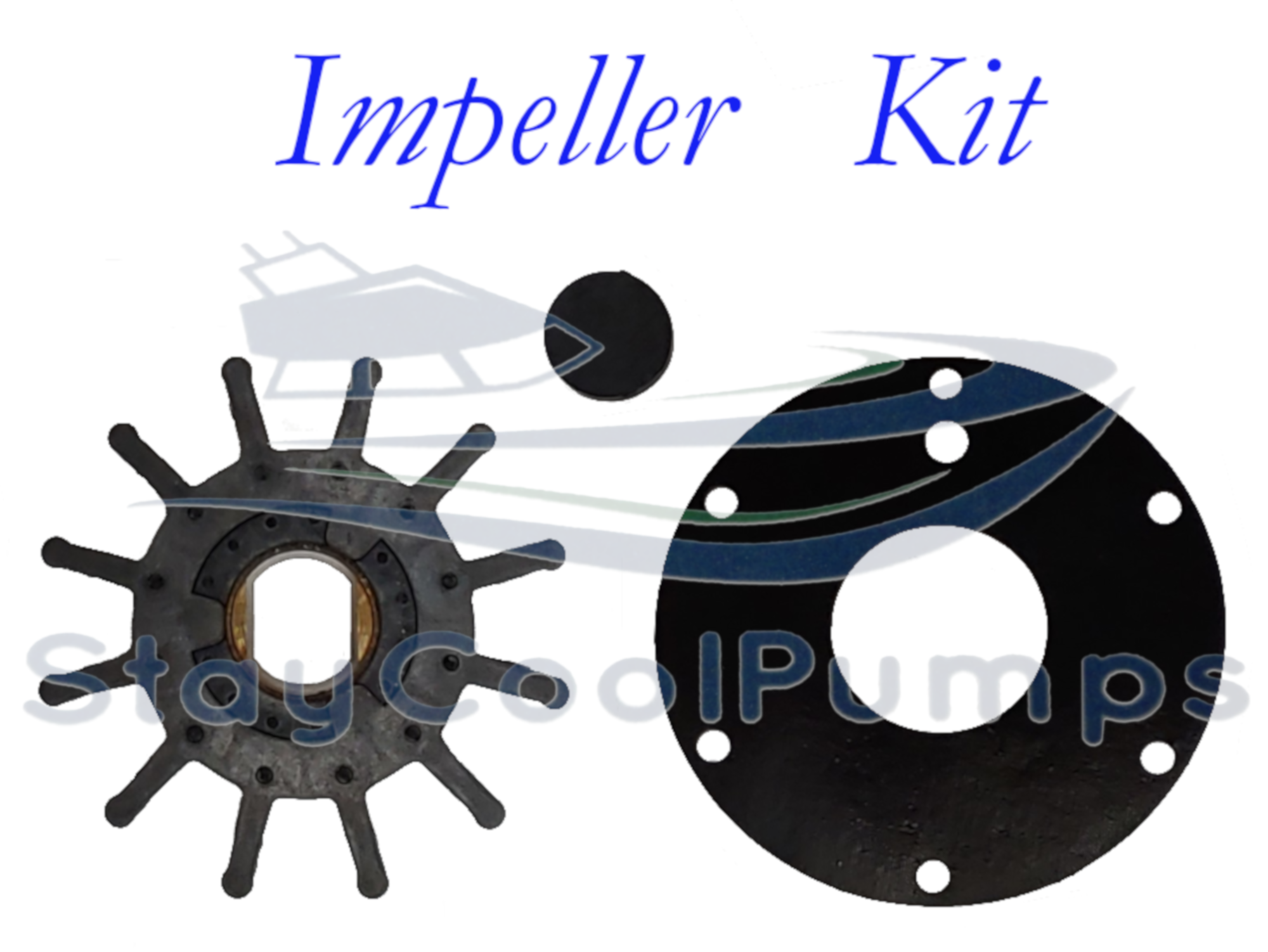

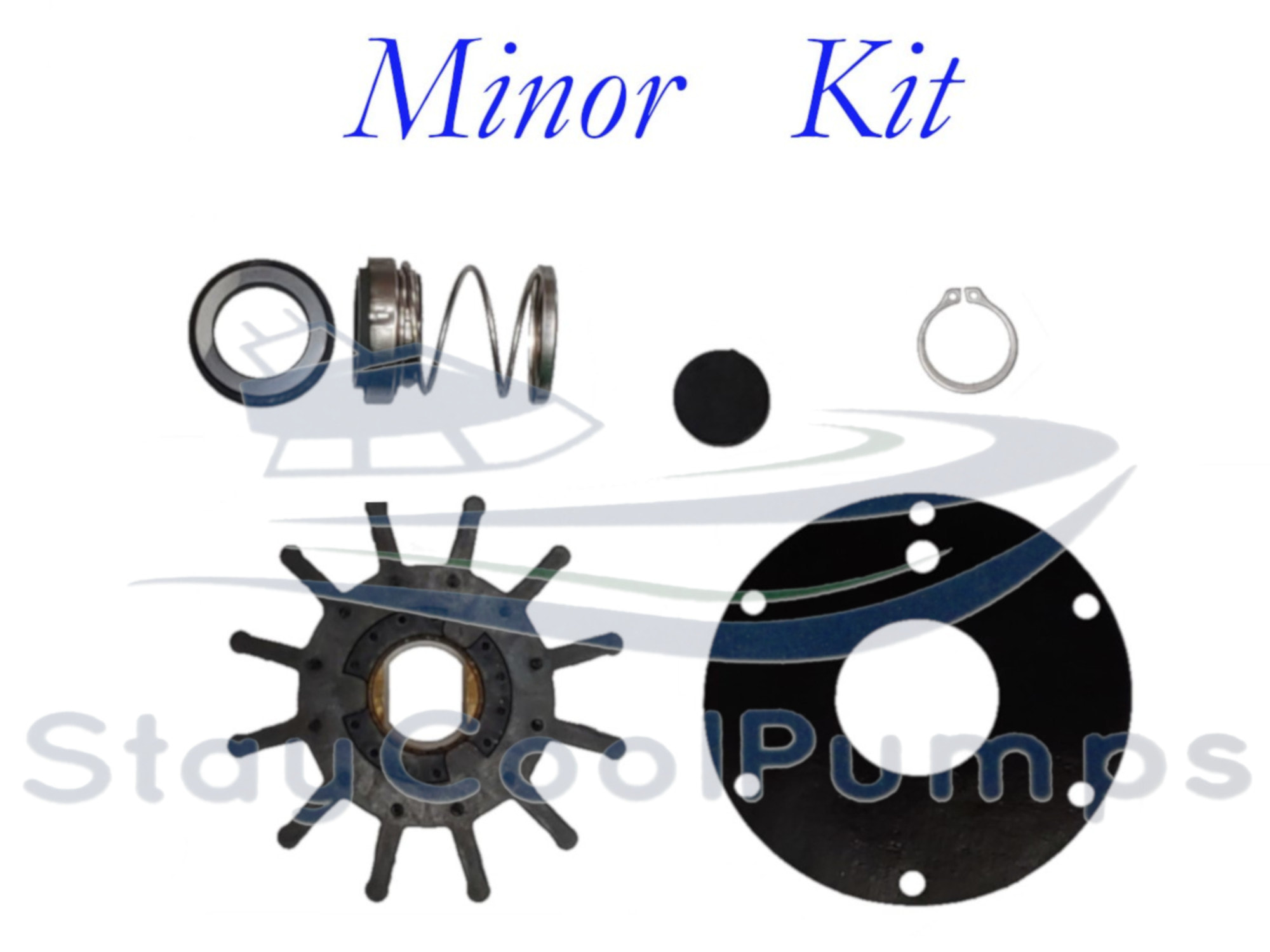

1 Each 17370-0001-P Impeller kit

1 Each 18721-0000 Retaining ring (minor)

1 Each 18753-0530 Slinger o-ring (minor)

1 Each 96080-0371 Mechanical Seal (minor)

2 Each 17372-1000 Wearplate (major)

1 Each 17374-1000 Cam Liner (major)

1 Each 18725-0000 Retaining ring (major)

2 Each 18752-0000 Ball Bearing (major)

1 Each 92701-0180 Seal (major)

1 Each 3N4850 Mounting Gasket (major)

2 Each 4L3833 Flange Gasket (major)


Impeller Specifications:

Width:    3-1/2" (88.9mm)

Diameter:  3-3/4" (95mm)

Shaft:    1"  (25.4mm)

Drive:    Type 5 Double Flat

Material:   Neoprene

Silhouette: Q 12 blades
