Repair Kit For Sherwood Dual Impeller Pump N10390G, Q10855G, R10935G
New Major Repair Kit for Small Block Chrysler Marine Engines, Double Pocket Pump with the Same size impellers and 3/4" pulley shaft.
The hoses are the same size, all 4 are 1".

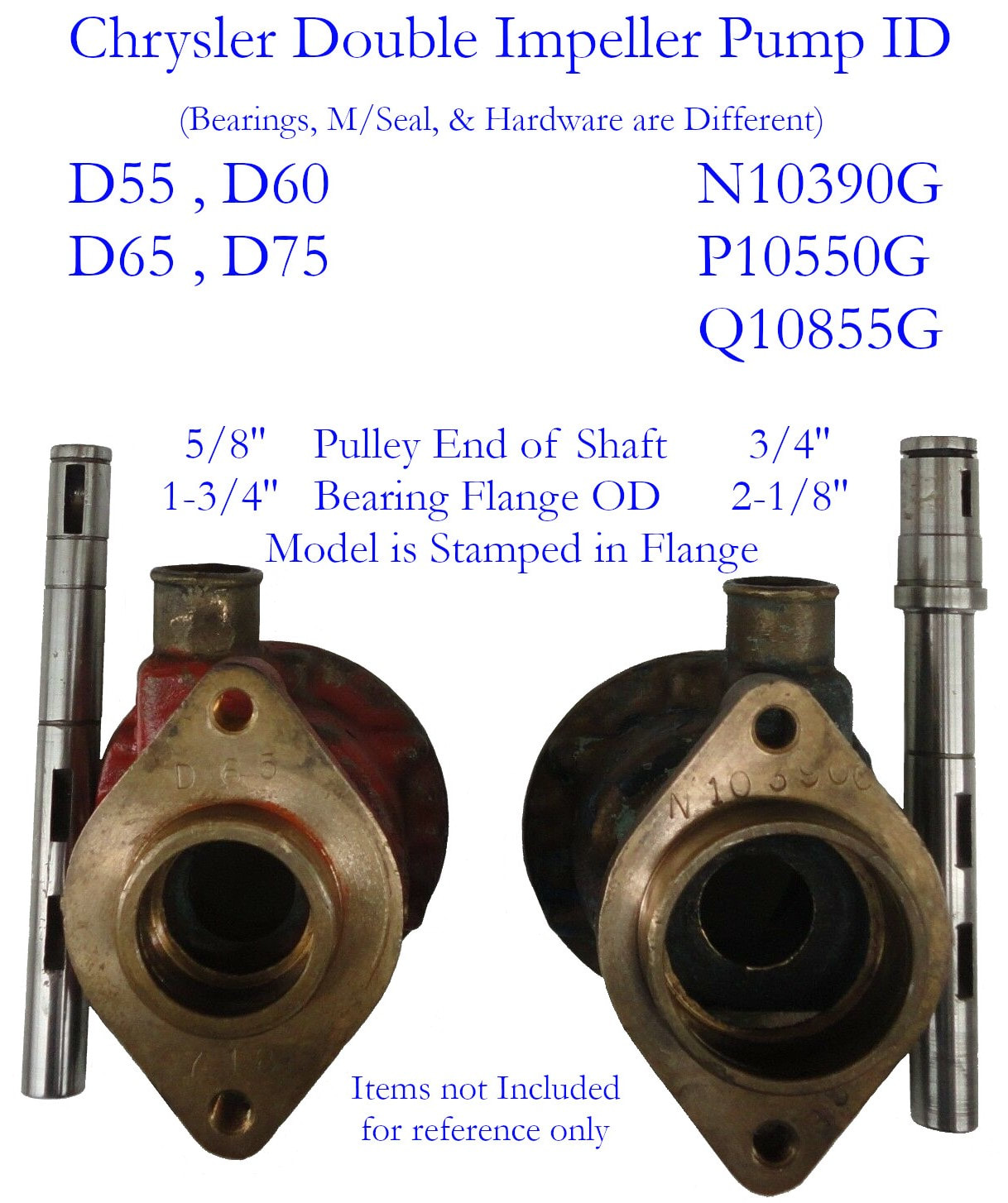

The shaft and pulley are 3/4" , later models are 5/8" and the seal , bearing and hardware are different
Fits pumps: N10390G , Q10855G , N10390-G , Q10855-G , N-10390G , Q-10855G , N-10390-G , Q-10855-G , R10935G , R10935-G , R-10935G , R-10935-G ,
Replaces Sherwood: 12814

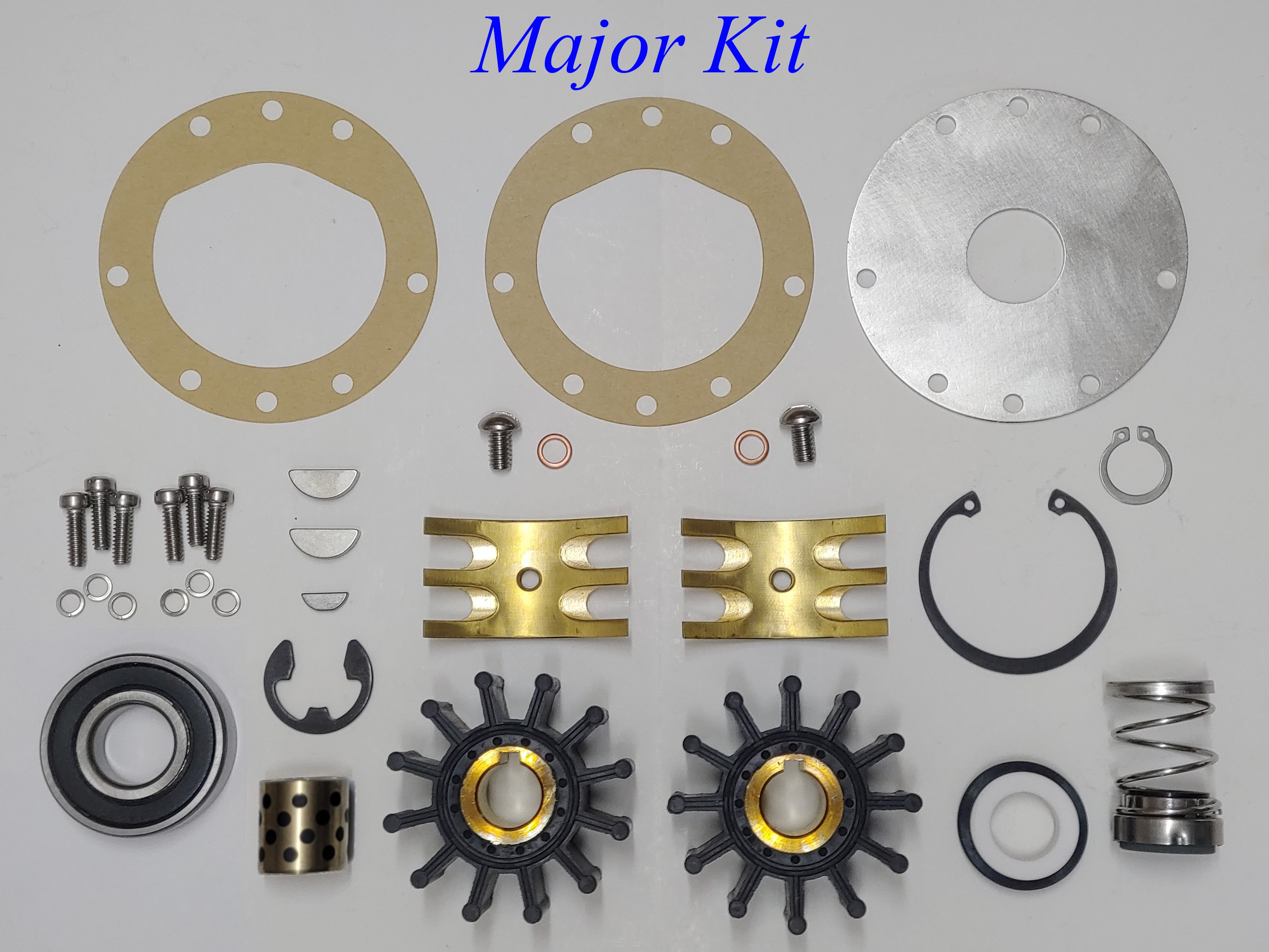

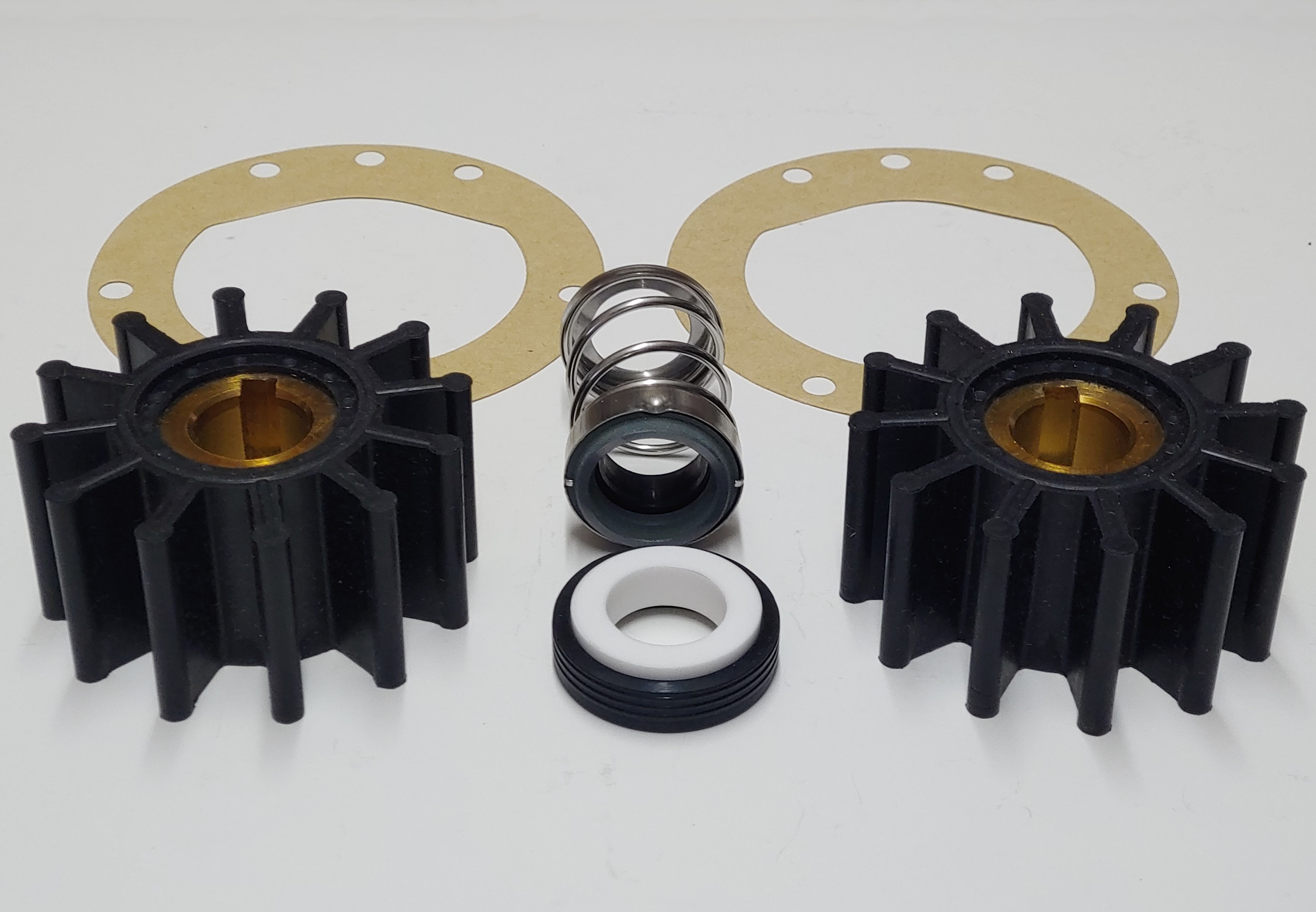

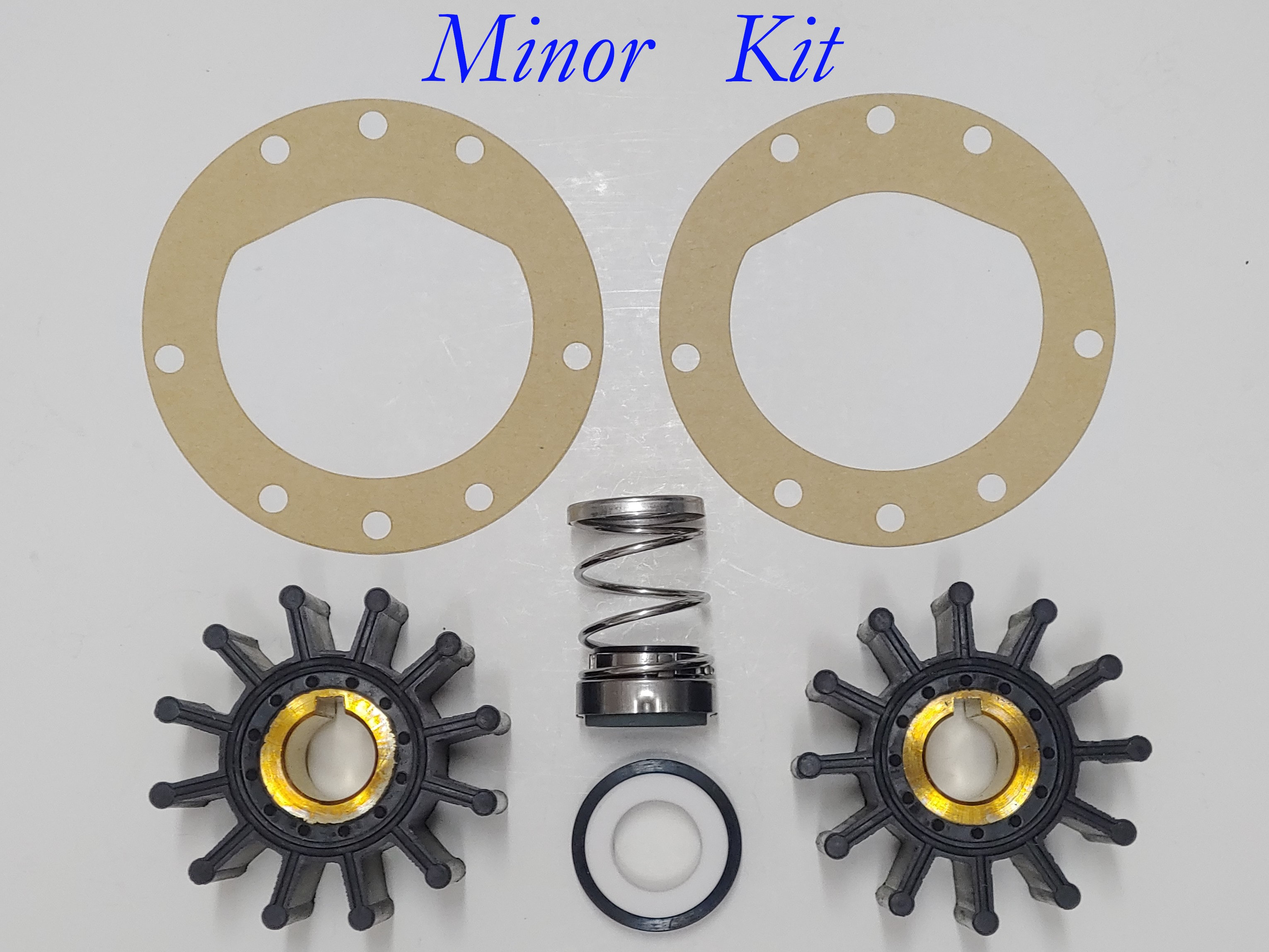

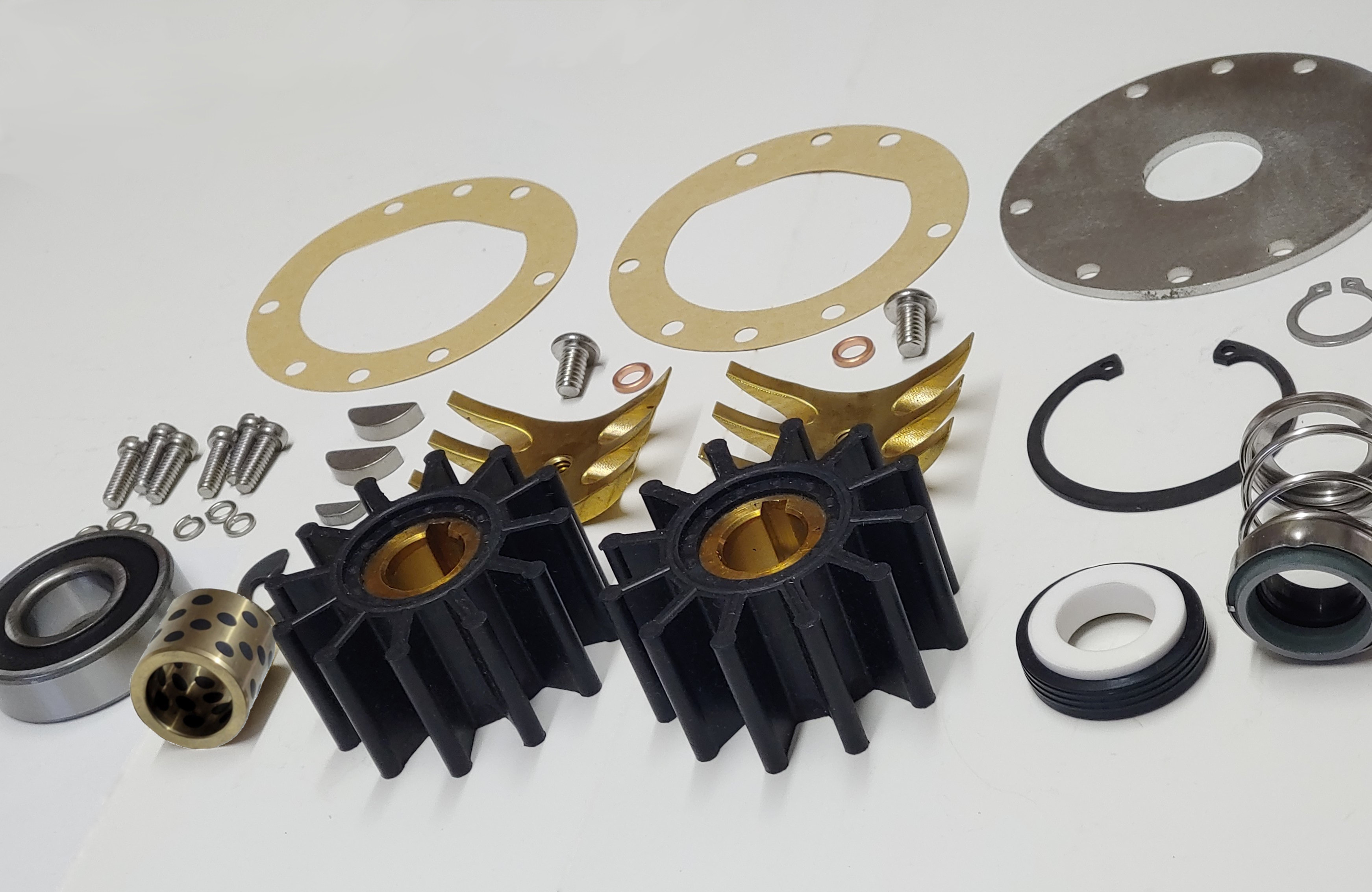

Includes:

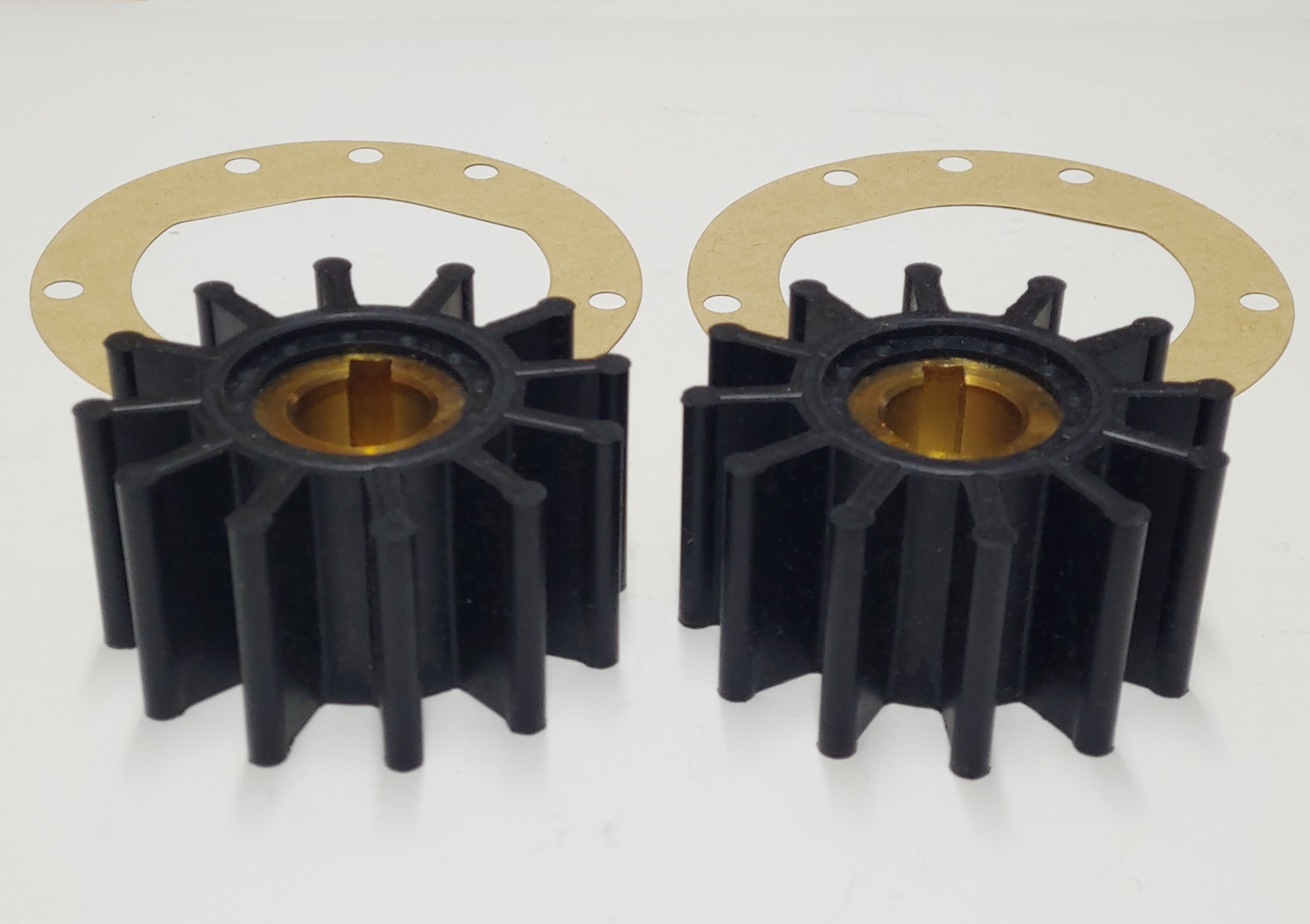

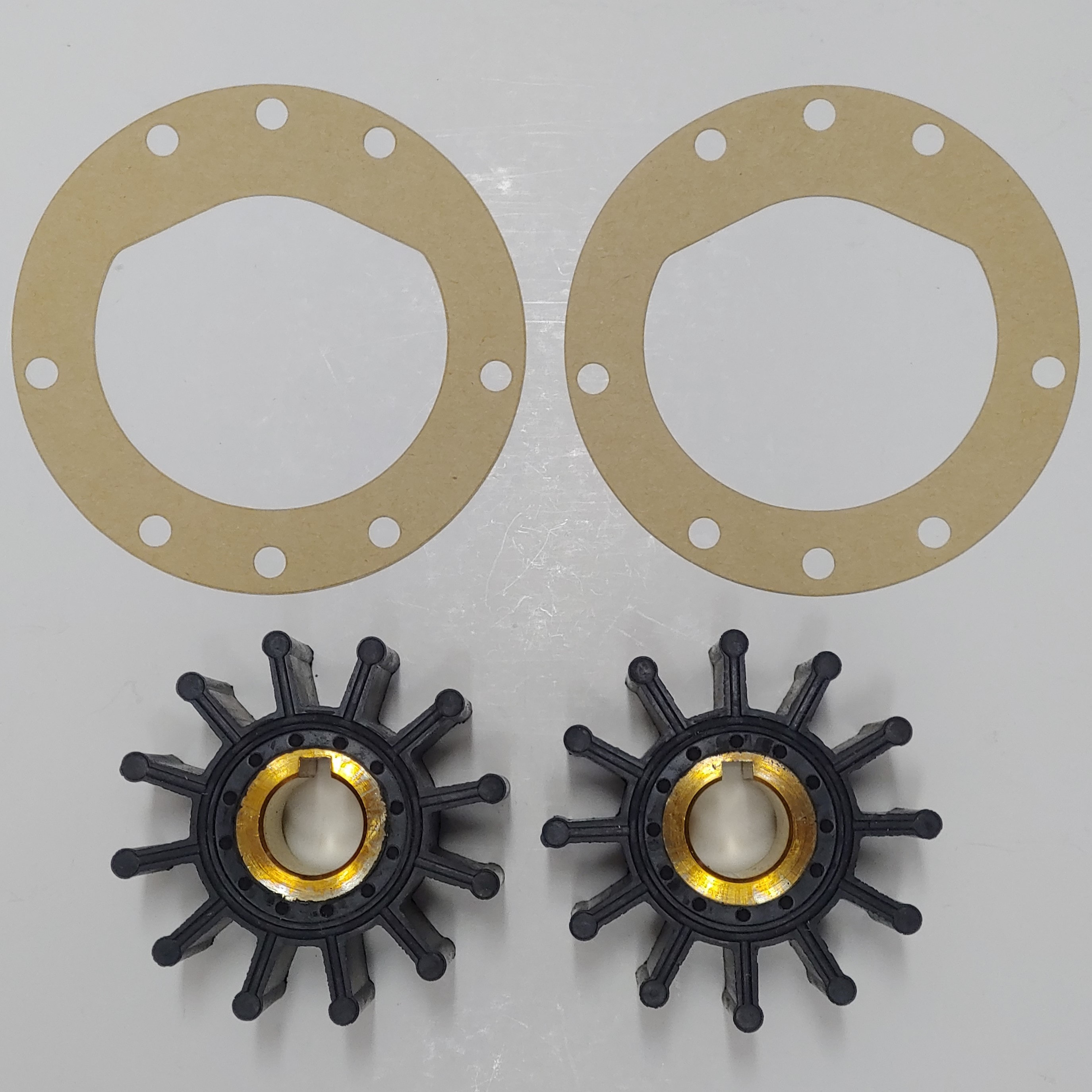

2 ea Impeller ( both are 1-1/4" wide )
2 ea Gasket
1 ea Mechanical Seal (minor)
1 ea Bearing (major)
1 ea Ret. Ring small (major)
1 ea Ret. Ring large (major)
1 ea Wear Plate (major)
3 ea Woodruff Key (major)
1 ea E-clip (major)
2 ea Cam Screw w/ copper washer (major)
2 ea Cam (major)
6 ea Screw w lock washer (major)
1 ea Graphite Plugged Brass Bushing (Solid Carbon Graphite like the original is available on request. It is more fragile and requires more care when pressing into position.)
Impeller Specifications:
Width: 1-1/4" (31.7mm)
Diameter: 2-7/16" (61.9mm)
Shaft: 5/8" (16mm)
Drive: 3/16" key
Material: Neoprene
Silhouette: 12 blades
