Minor Service Repair Kit Replaces Johnson 09-45581

SKU:
$85.50
$85.50
Unavailable
per item

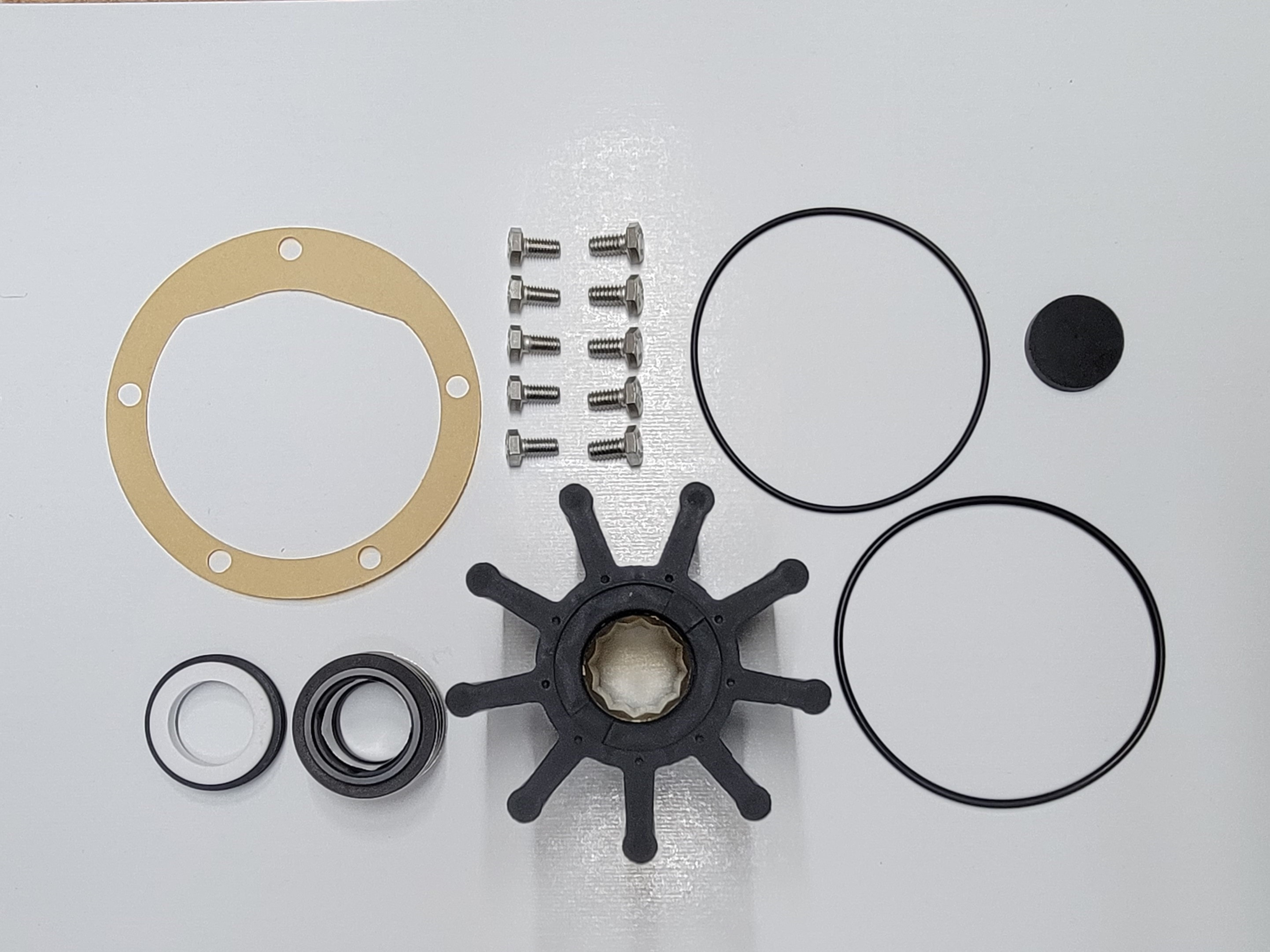

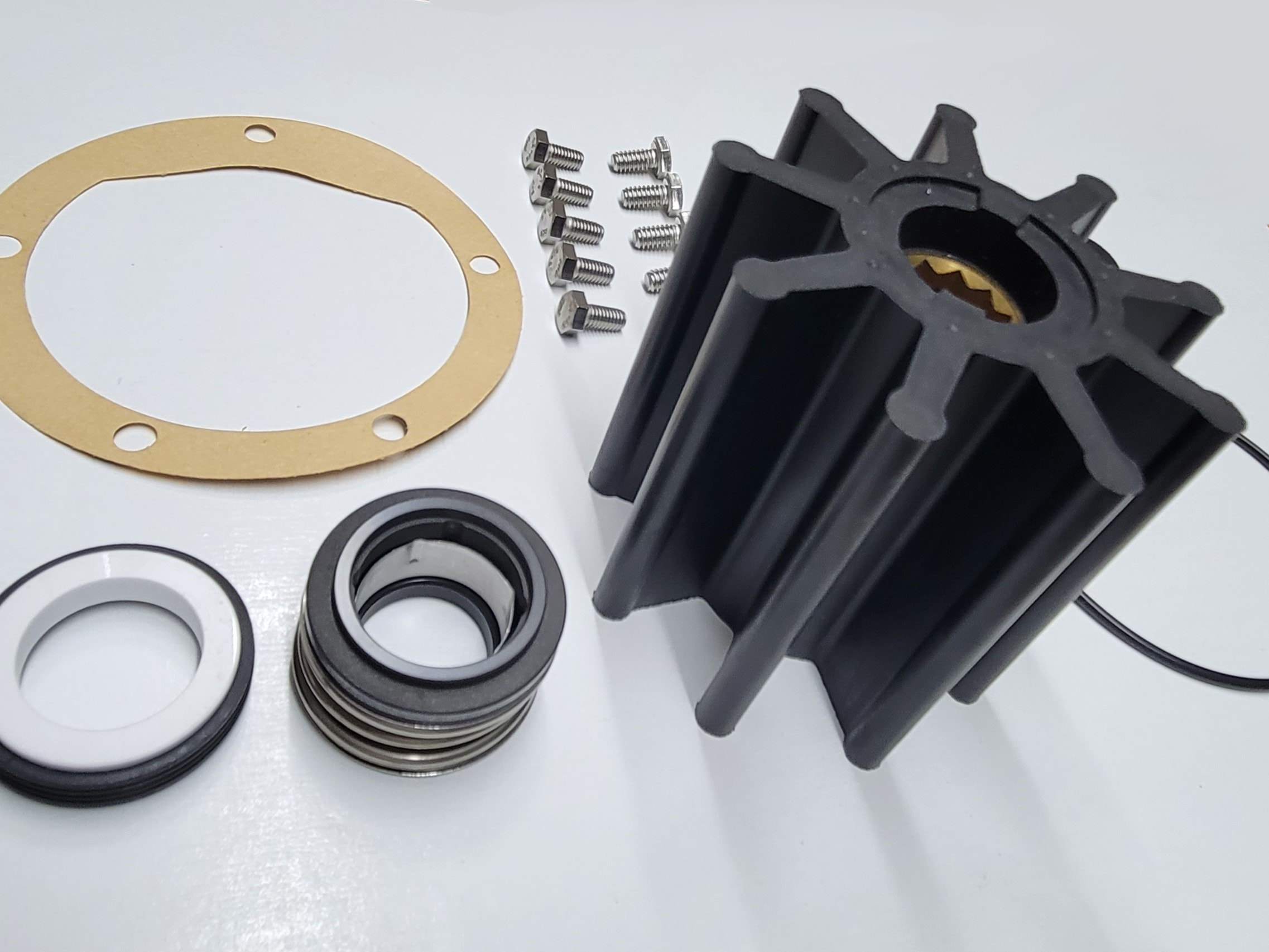

Aftermarket kit replaces:

Gasket , cover , 01-42424

O-ring , cover

Cover Screws , Metric and Standard

Impeller 09-802B

Mechanical Seal ,  0.2247.051 , 09-0.2247.051 , 09-20-118

Spline Plug

Impeller Specifications:

Width:    3.48" (88.5mm)

Diameter:  3.74" (95mm)

Shaft:      (25mm)

Drive:    12 Spline

Material:   Neoprene

Silhouette: 9 blades

Fits the pumps listed and many more...will add as I locate them.

10-13026-1  F9B-3000

10-13026-2  F9B-3030

10-13026-3  F9B-3020

10-13026-7  F9B-3007

10-13026-8  F9B-3037

10-13026-9  F9B-3027

10-13027-25  F9B-5007

10-13027-26  F9B-5007

10-13027-28  F9B-5007

10-13027-49  F9B-5007

10-13027-98  F9B

10-13177-01  F9B-3000-TSS

10-13225-01 F9B-3000

10-13226-99 F9B-5600

10-22346-1 F9B-3

10-22346-2 F9B-303

10-22362-  F9B-5

10-24072-1 F9B-9

10-24090-1 F9B-900

10-24090-2 F9B-903

10-24239-1 F9B-9

10-24239-2 F9B-9
