Major Repair Kit Johnson Pump 10-13248 and Deutz Series 1015
Major repair kit, for rebuild of Johnson pump numbers 10-13248 , 10-13248-01 , F95B-9
Can be used for 10-13248-02 but will pump a little more water as the cam is a little thicker.
Deutz Series 1015

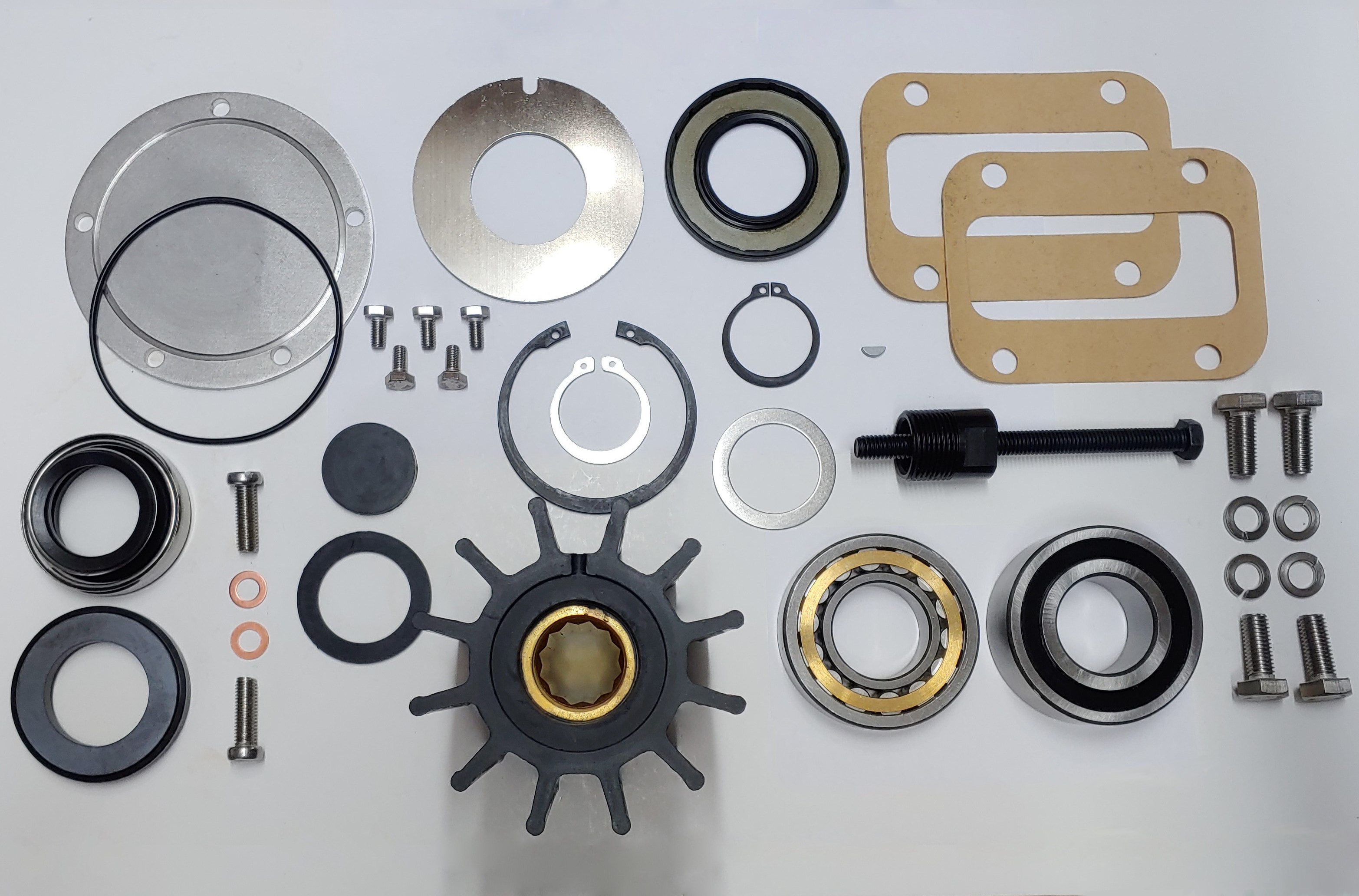

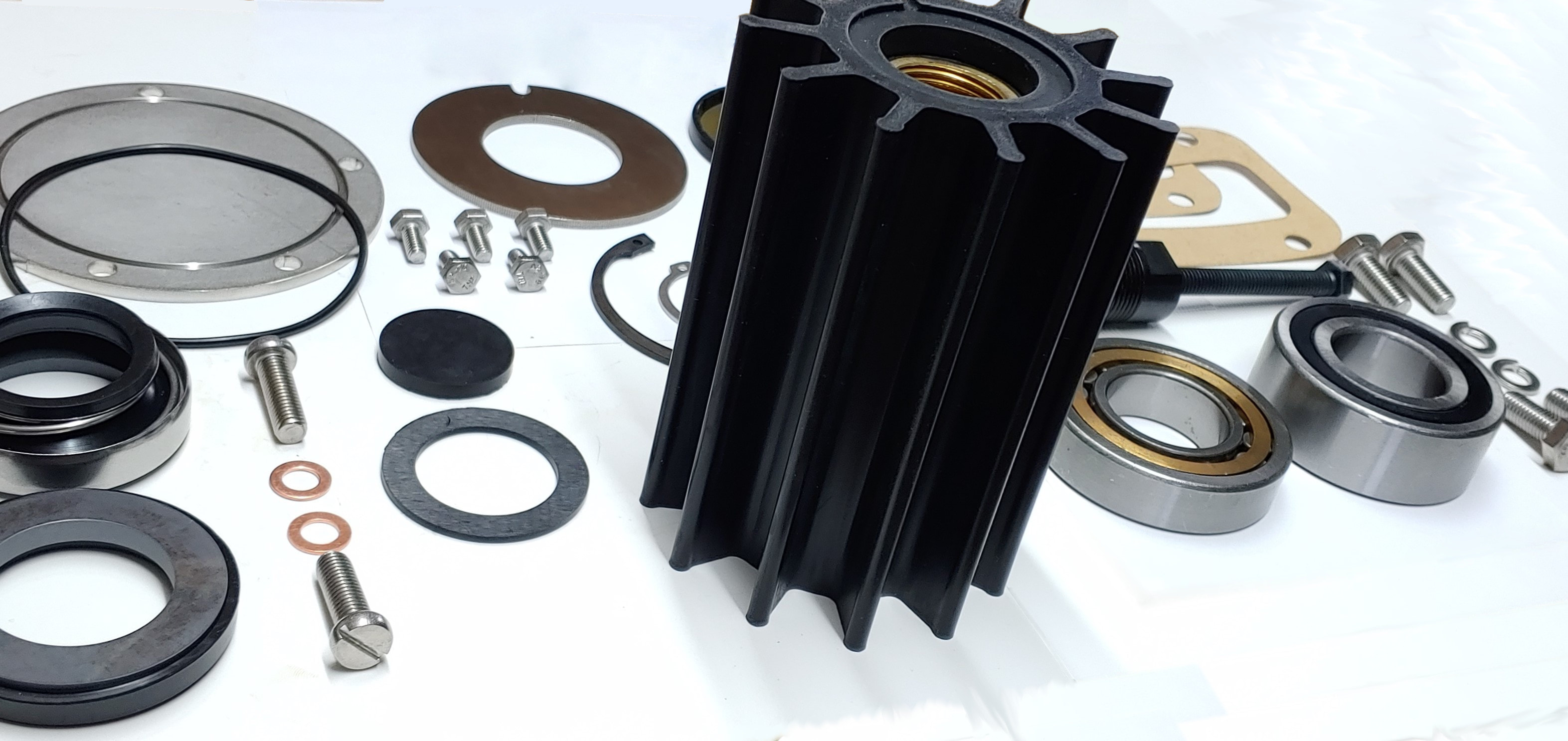

Includes the following aftermarket replacement items:
01-35773-2 End Cover
01-46538 Wear Plate
01-46323 Washer
0.0141.922 Bolt (4)
0.0353.111 Spring Washer (4)
0.0138.134 Cover Bolt (5)
01-46790-02 Washer (2)
01-46319 Gasket (2)
0.2172.142 Cover O-Ring
0.2247.018 Mechanical Seal
0.2234.502 Lip Seal
0.0370.035 Retaining Ring
0.0370.535 Retaining Ring
0.0371.072 Retaining Ring
09-820B Impeller
09-36166-01 Puller makes removal easy.
0.3428.515 Roller Bearing
0.3431.745 Ball Bearing
0.0503.010 Woodruff Key
01-46524 Slinger
01-46794-09 Cam Screw (2)

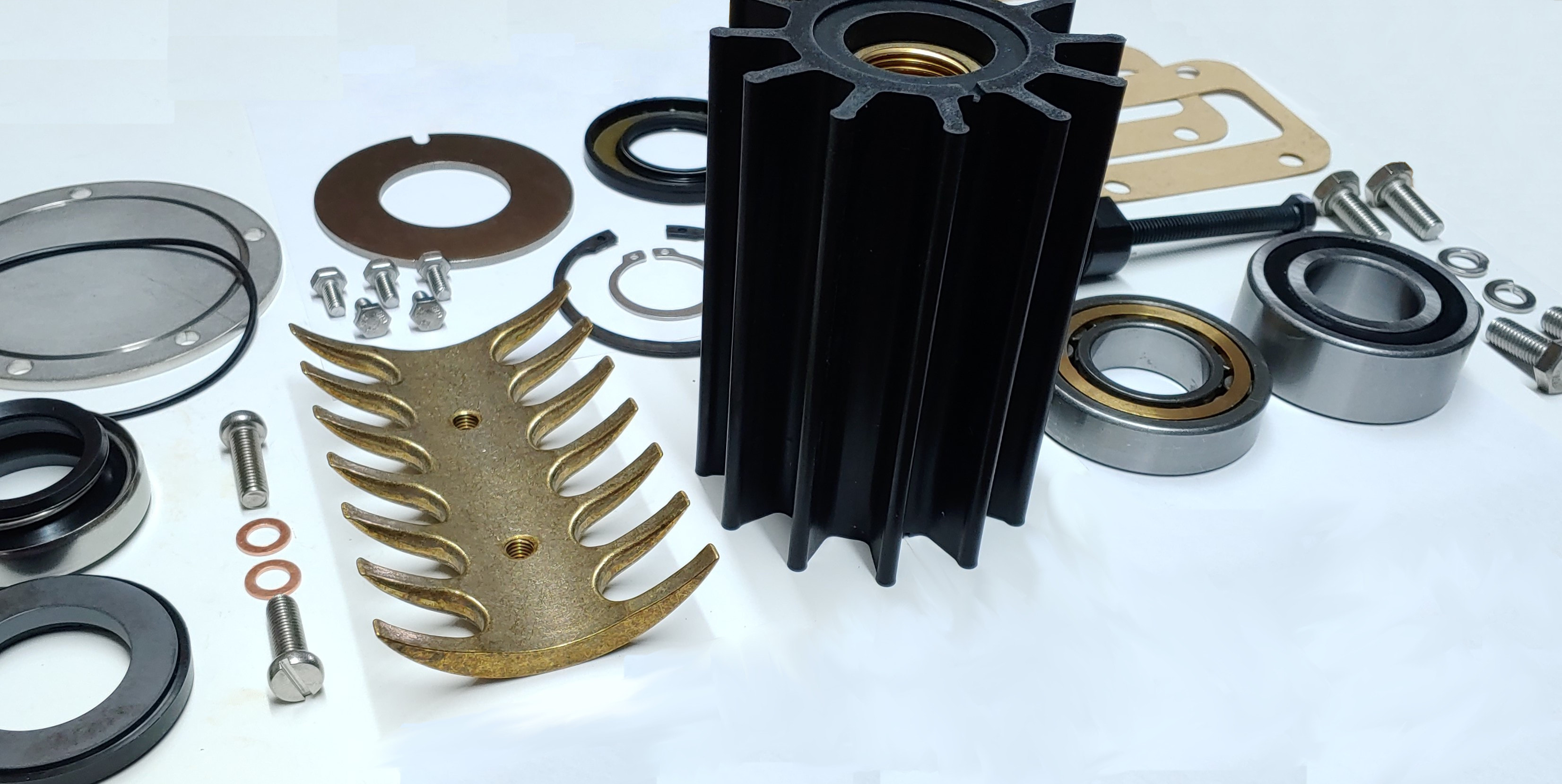

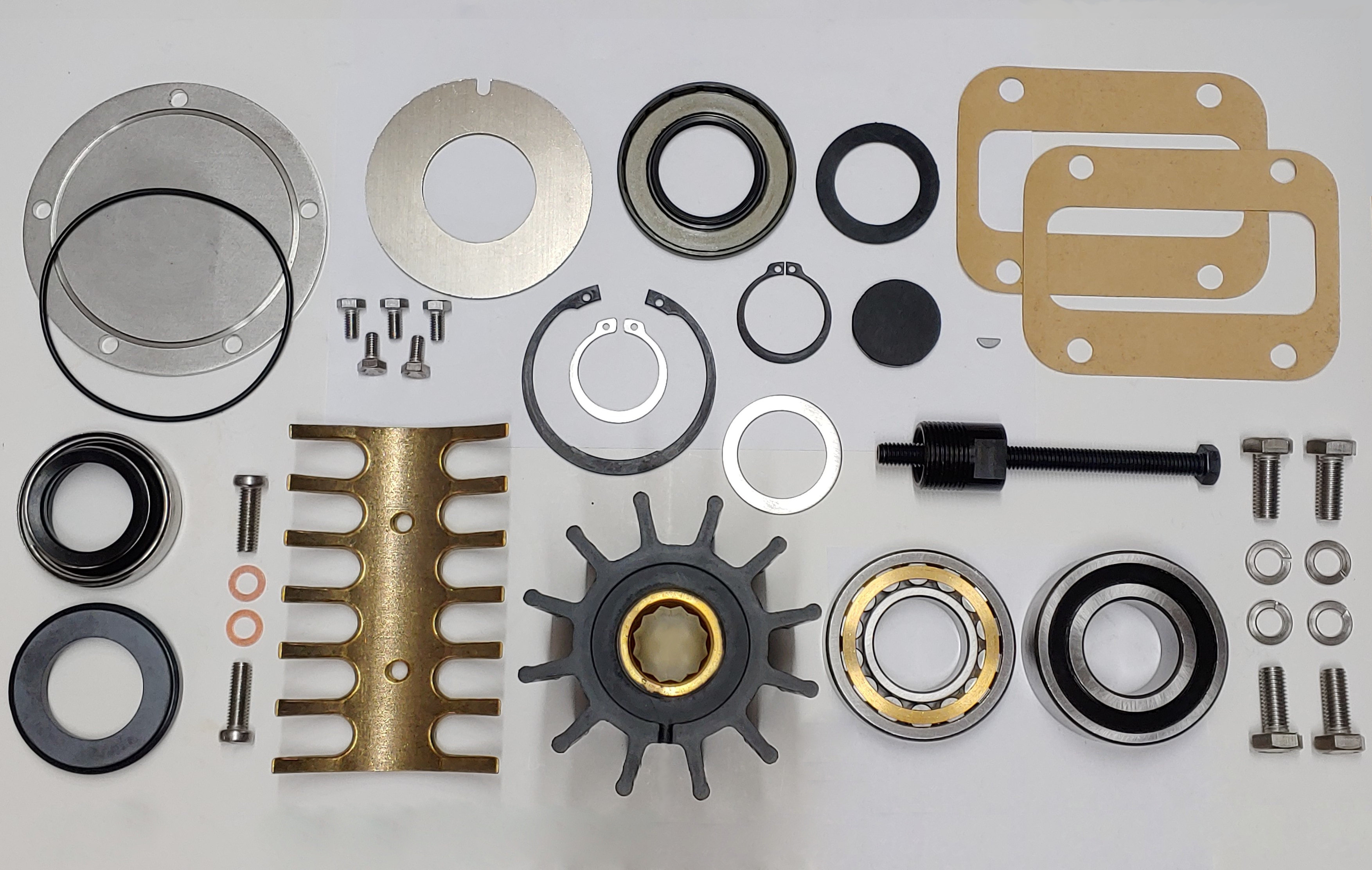

01-35744 Cam (optional)
Impeller Specifications:
Width: 5.12" (130mm)
Diameter: 3.74" (95mm)
Drive: 12 Spline
Material: Neoprene
Silhouette: 12 blades
