- Impeller Kit Replaces Westerbeke 34440 Sierra 23-3307
Impeller Kit Replaces Westerbeke 34440 Sierra 23-3307
SKU:
$27.95
$27.95
Unavailable
per item
New Raw Sea Water Pump Impeller Repair kit for many Westerbeke Marine Diesel Generators and Engines With Pump 33636
Important Note:
Fits pumps with the irregular cover made prior to March 2004. If your pump has a round cover and uses an o-ring it has a different shaft and will not fit, use impeller kit 48500.

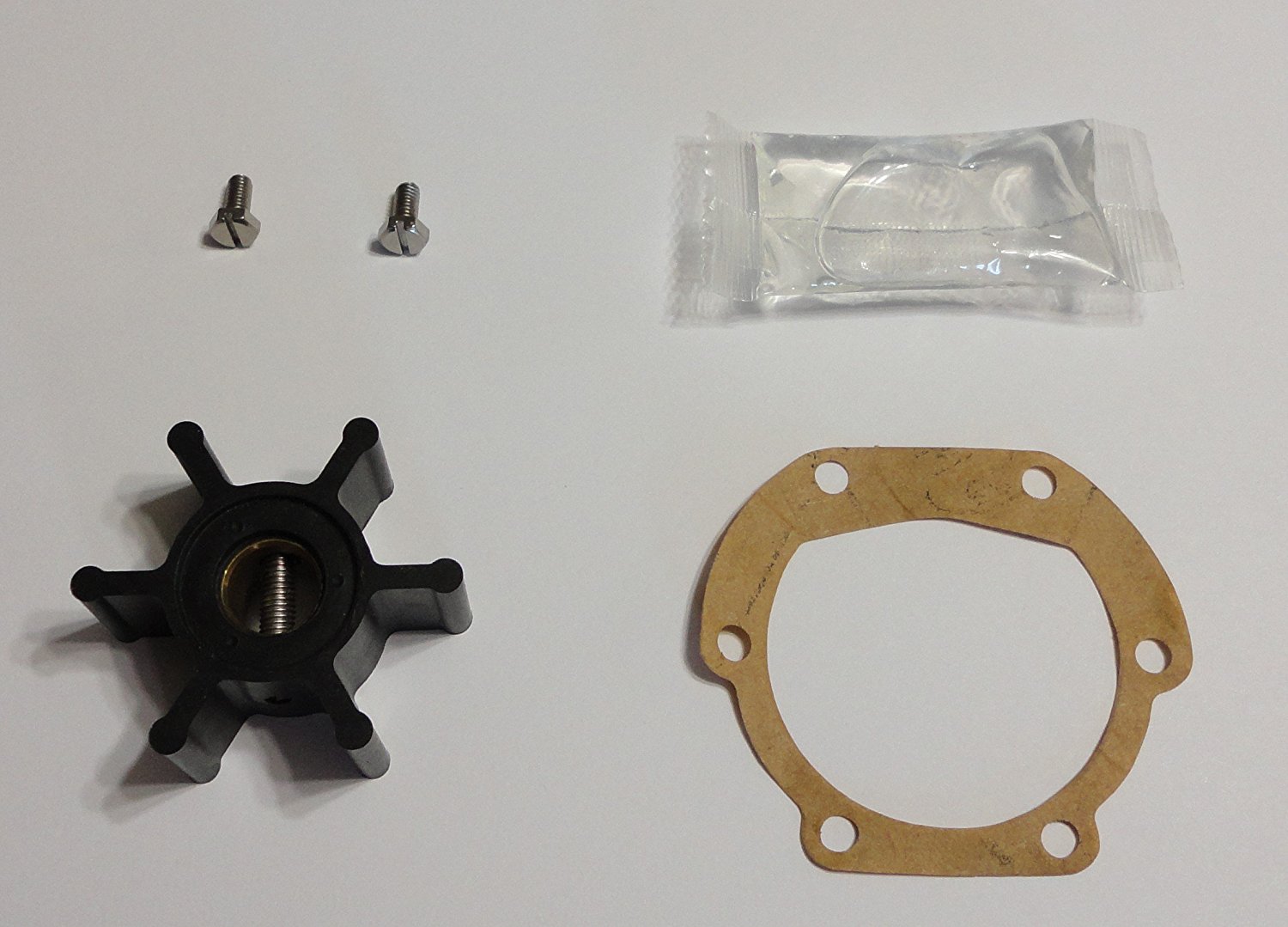

Includes: Gasket, Impeller, SS hex/slot Screws, Lube Packet
Replaces:
Westerbeke 34440 , 034440
Sierra 23-3307
Fits Westerbeke Diesel Generator Models: Using Pump # 33636 With the irregular cover made prior to March 2004.
4.0 BCD(60Hz)
4.4 BCD(60Hz)
4.4 WMD (60Hz) / 3.3 WMD (50Hz)
5.0 BCD (60Hz) /4.0 BCD (50Hz)
5.0 BCDA (60Hz) / 4.0 BCDA (50Hz)
5.0 BCDB (60Hz) / 4.0 BCDB (50Hz)
6.0 BCD (60Hz ) /4.5 BCD (50Hz)
7.6 BTD (60Hz) / 5.7 BTD (50Hz)
7.7 WMD (60Hz) / 5.8 WMD (50Hz)
8.0 BTD (60Hz) / 6.0 BTD (50Hz)
8.0 BCDT (60Hz) / 7.0 BCDT (50Hz)
8.0 BTDA (60Hz) / 6.0 BTDA (50Hz)
8.0 WMD (60Hz) / 6.0 WMD (50Hz)
10.0 BTD (60Hz) / 7.5 BTD (50Hz)
10.0 BTDA (60Hz) / 7.5 BTDA (50Hz)
11.0 BTD (60Hz) / 8.3 BTD (50Hz)
11.0 WMD (60Hz) / 8.3 WMD (50Hz)
12.5 BTD (60Hz) / 9.4 BTD (50Hz)
12.5 BTDA (60Hz) / 9.4 BTDA (50Hz)
12.5 BTDB (60Hz) / 9.4 BTDB (50Hz)
12.5 WMD (60Hz) / 9.4 WMD (50Hz)
15.0 BTDC (60Hz) / 12.0 BTDC (50Hz)
Westerbeke Diesel Engines Using Pump # 33636 With the irregular cover made prior to March 2004.
44A
44B
12C TWO
30C THREE
35E THREE
44C FOUR
WILL ADD MORE AS i LOCATE THEM
Impeller Specifications:
Width: 7/8" (22mm)
Diameter: 2" (50.8mm)
Shaft: .472" (12mm)
Drive: Slot (pin)
Material: Neoprene
Silhouette: 6 blades
Important Note:
Fits pumps with the irregular cover made prior to March 2004. If your pump has a round cover and uses an o-ring it has a different shaft and will not fit, use impeller kit 48500.
Includes: Gasket, Impeller, SS hex/slot Screws, Lube Packet
Replaces:
Westerbeke 34440 , 034440
Sierra 23-3307
Fits Westerbeke Diesel Generator Models: Using Pump # 33636 With the irregular cover made prior to March 2004.
4.0 BCD(60Hz)
4.4 BCD(60Hz)
4.4 WMD (60Hz) / 3.3 WMD (50Hz)
5.0 BCD (60Hz) /4.0 BCD (50Hz)
5.0 BCDA (60Hz) / 4.0 BCDA (50Hz)
5.0 BCDB (60Hz) / 4.0 BCDB (50Hz)
6.0 BCD (60Hz ) /4.5 BCD (50Hz)
7.6 BTD (60Hz) / 5.7 BTD (50Hz)
7.7 WMD (60Hz) / 5.8 WMD (50Hz)
8.0 BTD (60Hz) / 6.0 BTD (50Hz)
8.0 BCDT (60Hz) / 7.0 BCDT (50Hz)
8.0 BTDA (60Hz) / 6.0 BTDA (50Hz)
8.0 WMD (60Hz) / 6.0 WMD (50Hz)
10.0 BTD (60Hz) / 7.5 BTD (50Hz)
10.0 BTDA (60Hz) / 7.5 BTDA (50Hz)
11.0 BTD (60Hz) / 8.3 BTD (50Hz)
11.0 WMD (60Hz) / 8.3 WMD (50Hz)
12.5 BTD (60Hz) / 9.4 BTD (50Hz)
12.5 BTDA (60Hz) / 9.4 BTDA (50Hz)
12.5 BTDB (60Hz) / 9.4 BTDB (50Hz)
12.5 WMD (60Hz) / 9.4 WMD (50Hz)
15.0 BTDC (60Hz) / 12.0 BTDC (50Hz)
Westerbeke Diesel Engines Using Pump # 33636 With the irregular cover made prior to March 2004.
44A
44B
12C TWO
30C THREE
35E THREE
44C FOUR
WILL ADD MORE AS i LOCATE THEM
Impeller Specifications:
Width: 7/8" (22mm)
Diameter: 2" (50.8mm)
Shaft: .472" (12mm)
Drive: Slot (pin)
Material: Neoprene
Silhouette: 6 blades
