Sea Water Pump Impeller Service Kit Replaces Johnson 09-45587

SKU:
$32.50
$32.50
Unavailable
per item

New Sea Water Pump Impeller Repair Service kit for many Marine Engines


Replaces:

Johnson 09-45587 , F4B-8/8007

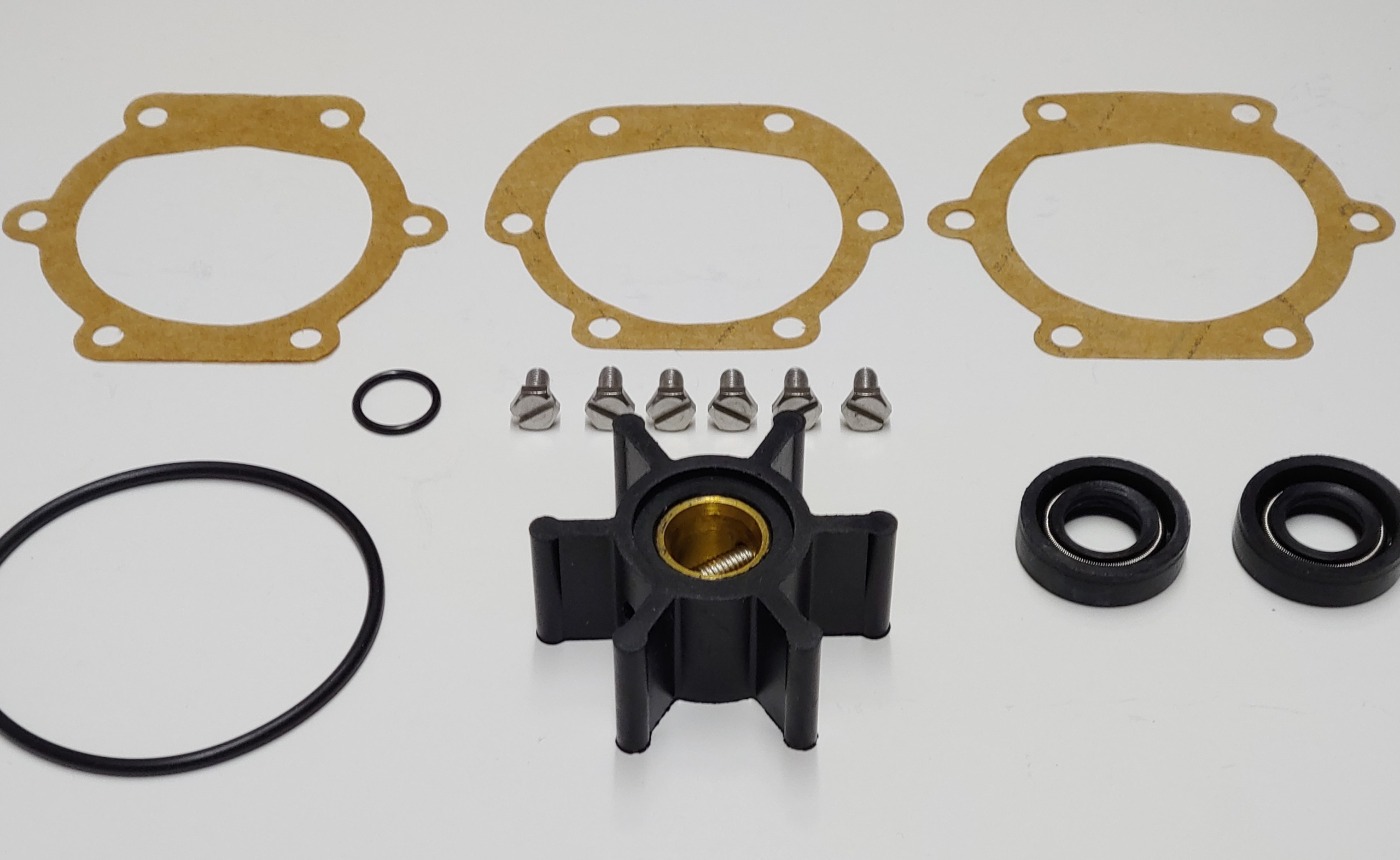

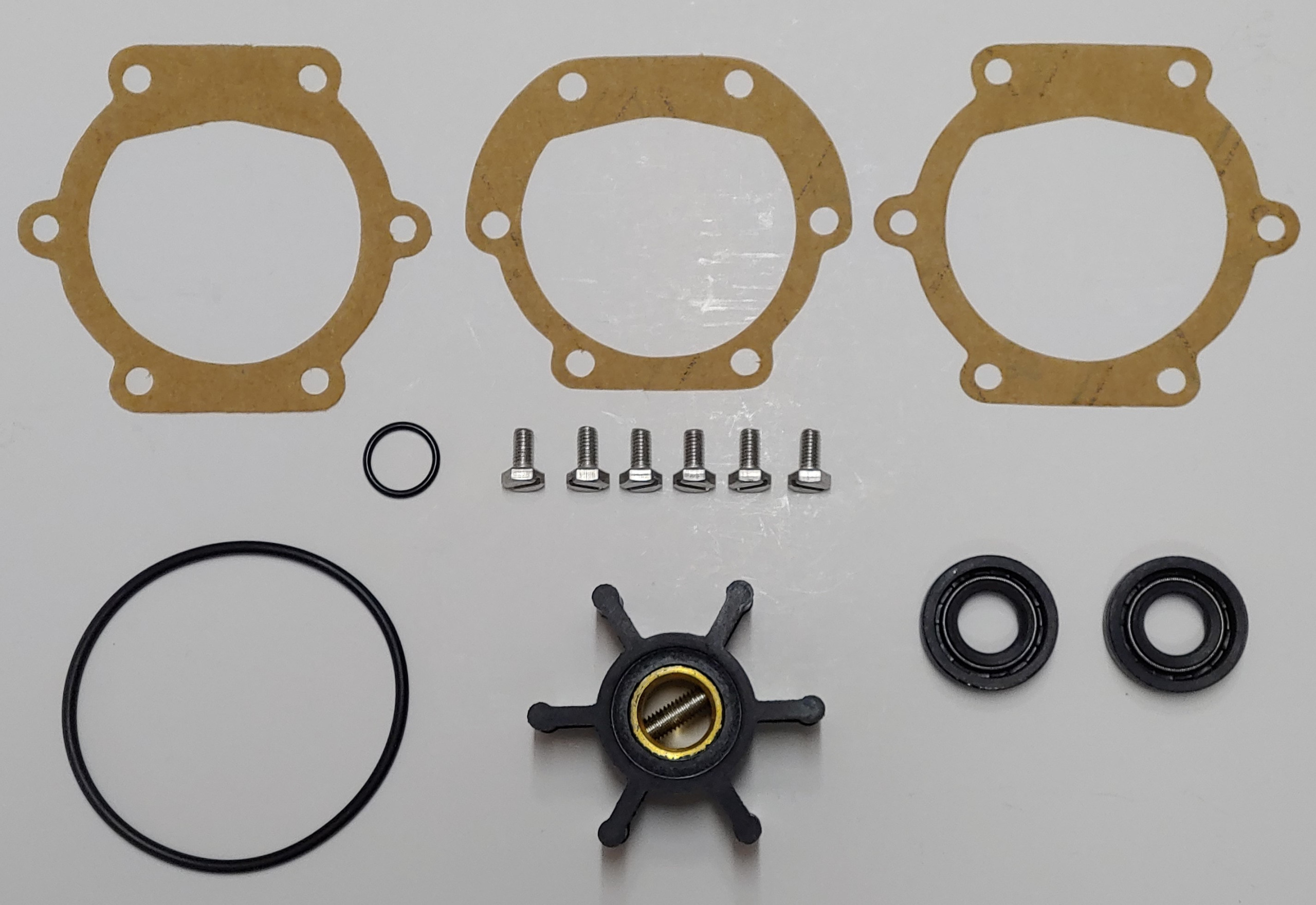

Includes:

3 ea Gasket

2 ea O-ring

1 ea Impeller

2 ea Seal with 316 SS Spring

6 ea SS Screws (slotted and hex)


Fits Pumps:

10-24074-1, 10-24074-2, 10-24074, 10-24074-3, 10-24074-4, 10-24074-5, 10-24074-6, 10-24074-7, 10-24074-9, 10-24074-11, 10-24074-12, 10-24074-13, 10-24074-14, 10-24074-71, 10-24099-1, 10-24099-2, 10-24099-3, 10-24570-13, 10-24570-19, 10-24570-52, 10-24570-54, 10-25127-2, 10-24319-01, 10-24319-02, 10-24319-03, 10-24321-01, 10-24321-02, 10-24321-03, 10-24326-01, 10-24326-02, 10-24326-03, 10-24335-01, 10-24336-01, 10-24336-02, 10-24336-03, 10-24341-01, 10-24341-02, 10-24341-03, 10-14514-01, 10-25115-1, 10-25115-2, 10-25127-1, 10-25161-1, 10-25167-1, 10-25167-2, 10-25167-3, 10-25240-1, 10-25241-1, 10-25241-2, 10-25271-01, 10-25333-01, 10-25355-01, 10-25725-01, 10-24144-1, 10-24144-2, 10-24164-1, 10-24164-2, 10-24509-01, 10-24509-02, 10-25265-1


Impeller Specifications:

Width:    7/8" (22mm)

Diameter:  2" (50.8mm)

Shaft:    .472"  (12mm)

Drive:    Slot (pin)

Material:   Neoprene

Silhouette: 6 blades
