Impeller Repair Service Kit Replaces Johnson 09-45808 F5B-9 Pump 10-24228-1

SKU:
$20.00
$20.00
Unavailable
per item

Includes parts diagram and service instructions.


This is a new service repair kit that fits many marine engines with crank driven sea water pumps:

Johnson Pump numbers:  10-24228-1

Marine Power: 350 V-8

Indmar: 200

Volvo Engines: AQ200, AQ225, AQ260, AQ290, AQ180, AQ205, AQ211A, AQ231A, AQ255, AQ271A, AQ271B, AQ271C, AQ271D, AQ280, AQ290.

Alaska Diesel Engines: M4219, L4219, M4239, M4276, M439, M4545M, L455, M614, M668, L668

Small & Big Block Ford engines


Replaces Johnson Model: 09-45808

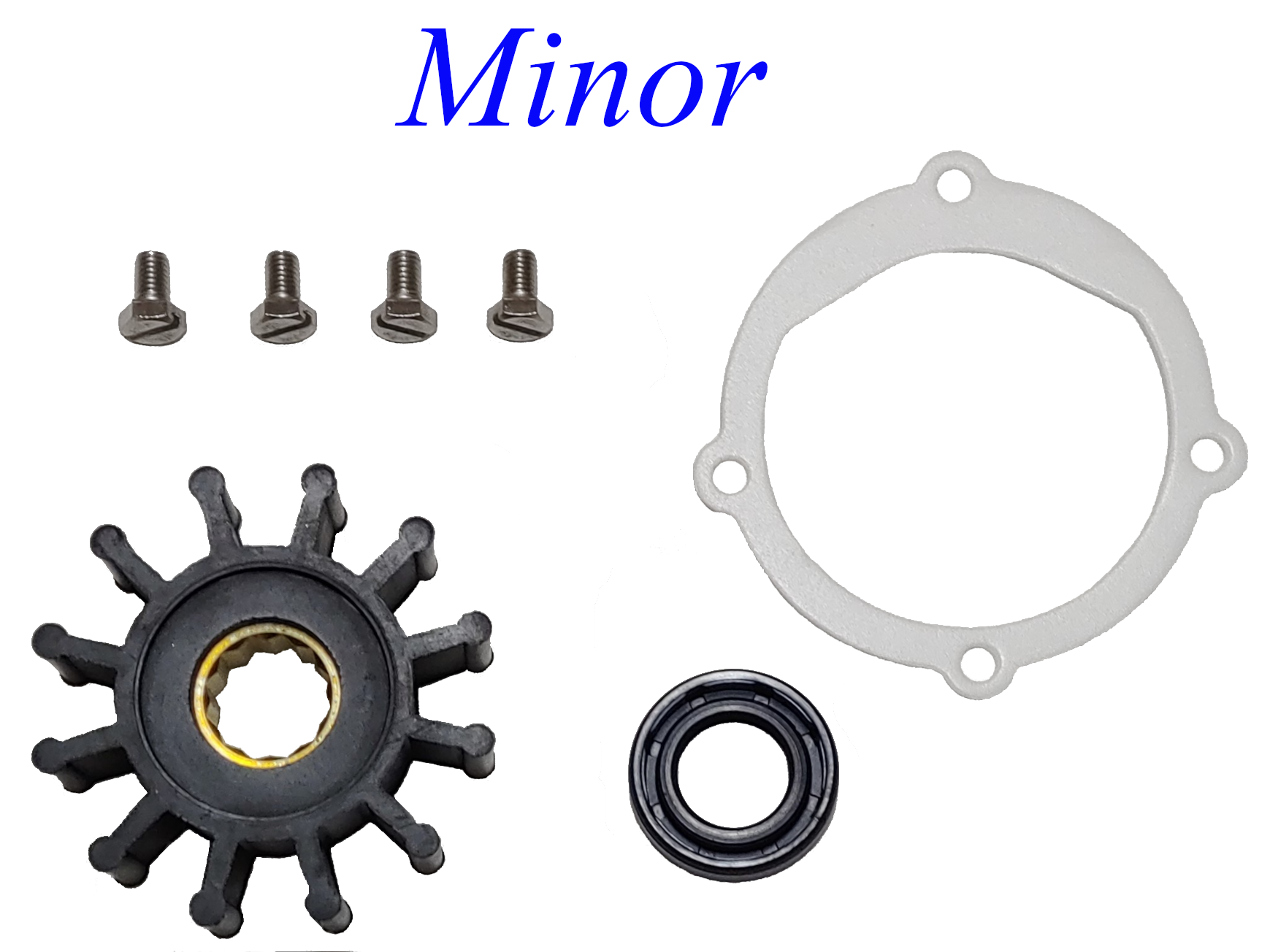

Aftermarket parts. Includes:

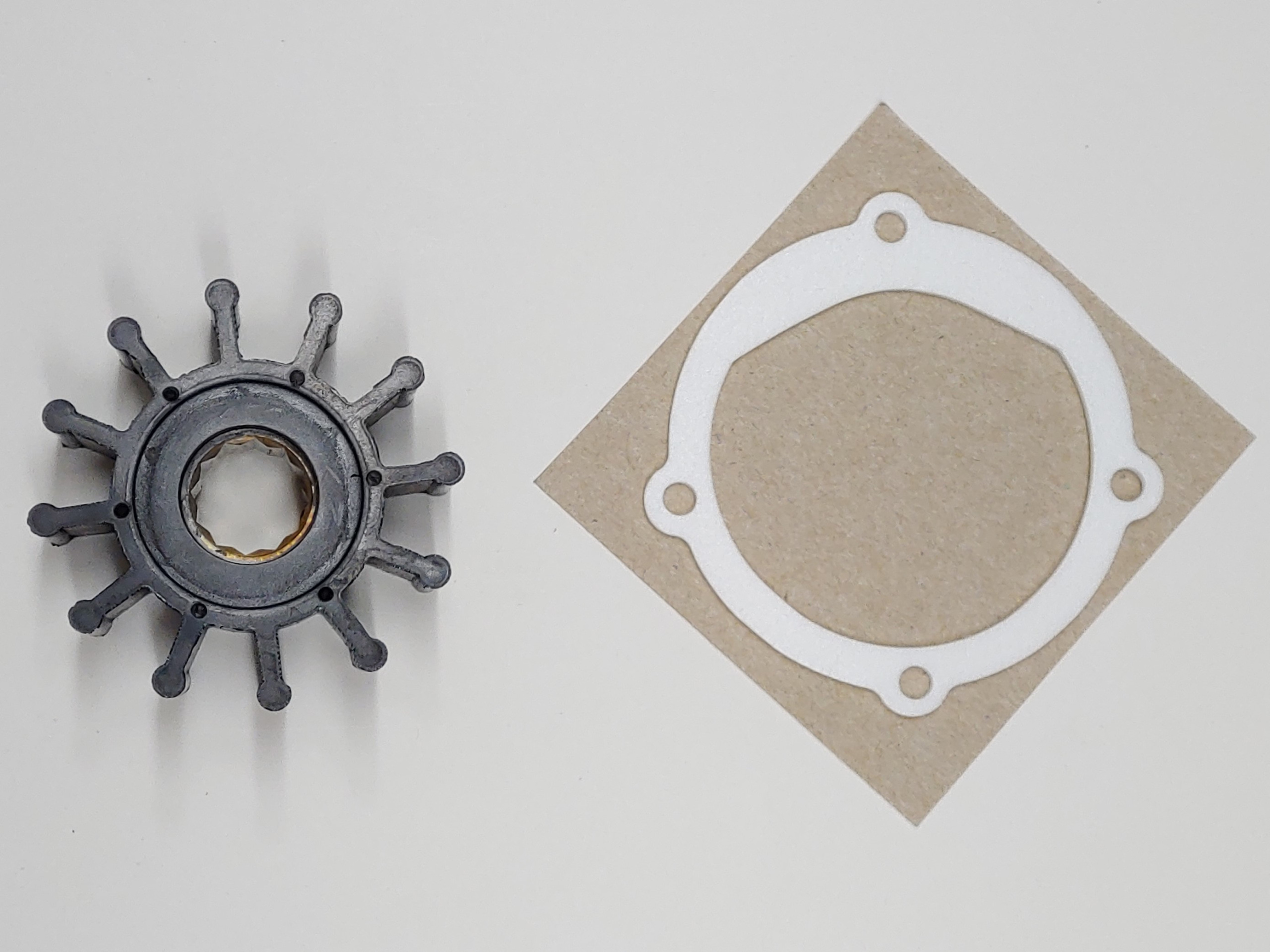

Impeller

Gasket

Lip seal with SS spring & framework (minor)

--the washer is not used as it is built into the seal.

(4) SS hex screws (minor)

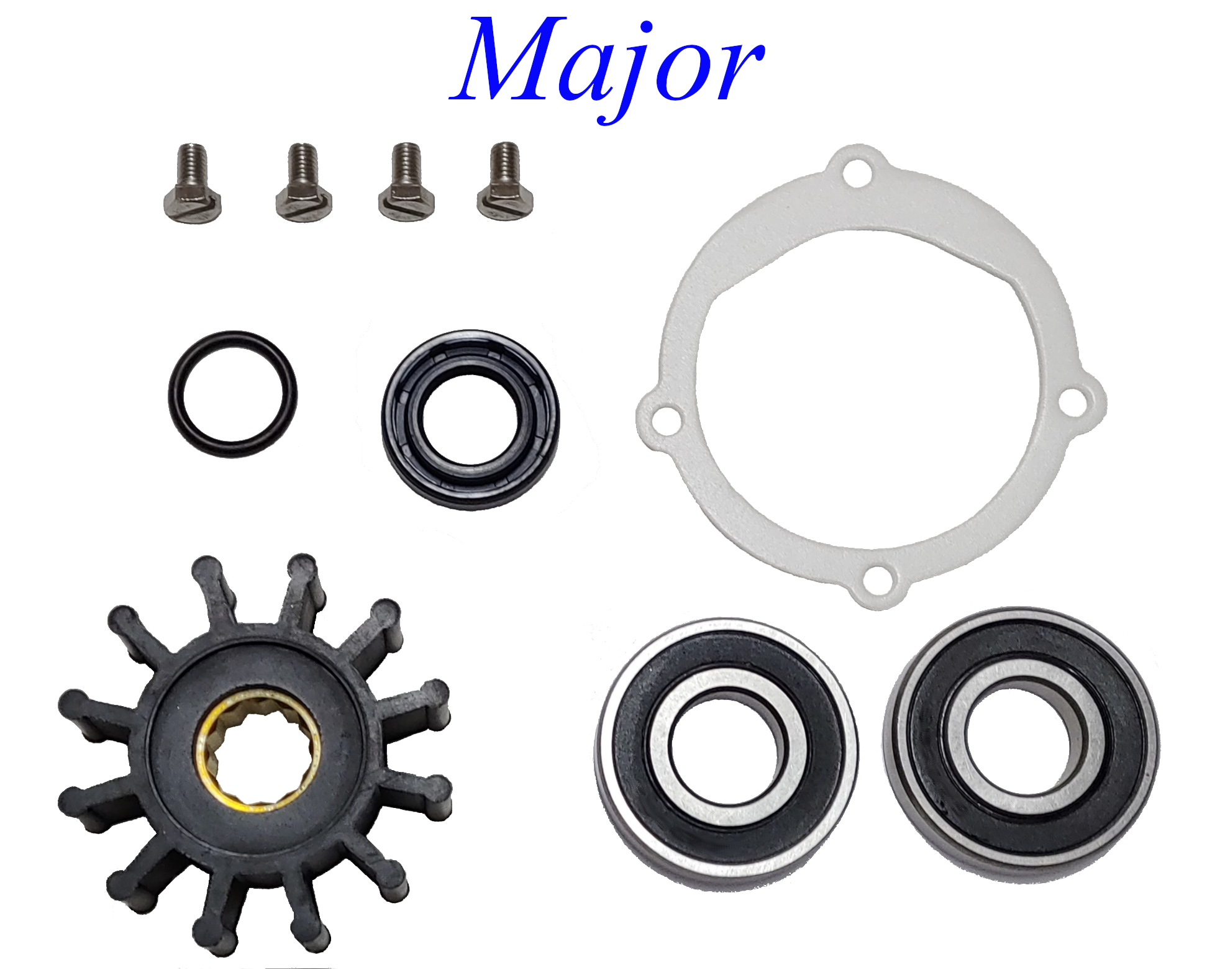

Premium Bearings (ABEC 3/C3) (major)

Slinger (major)

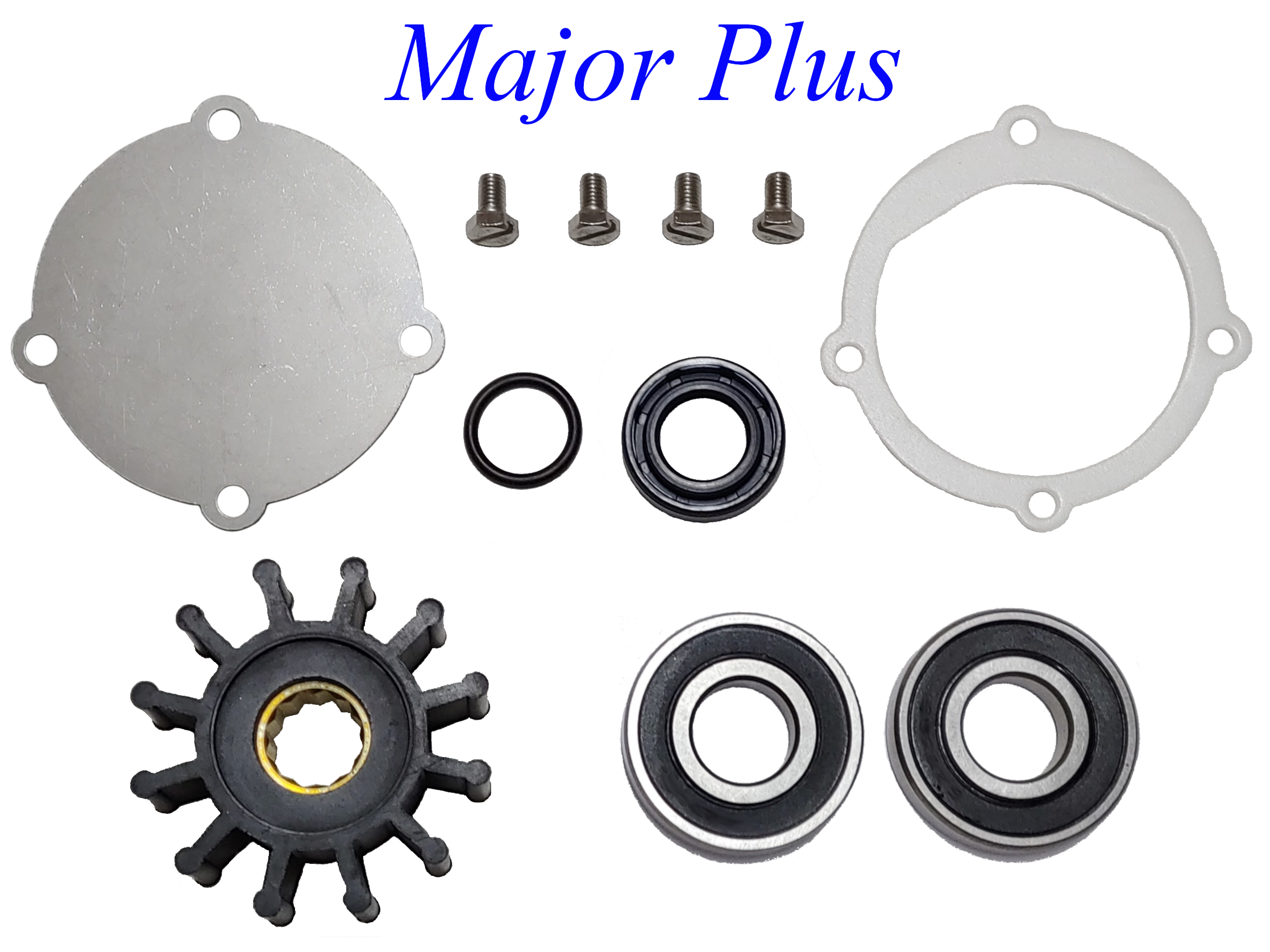

Cover (major plus)


Impeller Specifications:

Width:    1-1/4" (31.5mm)

Diameter:  2-1/4" (57mm)

Shaft:    5/8"  (16mm)

Drive:    12 Spline

Material:   Neoprene

Silhouette: 12 blades
